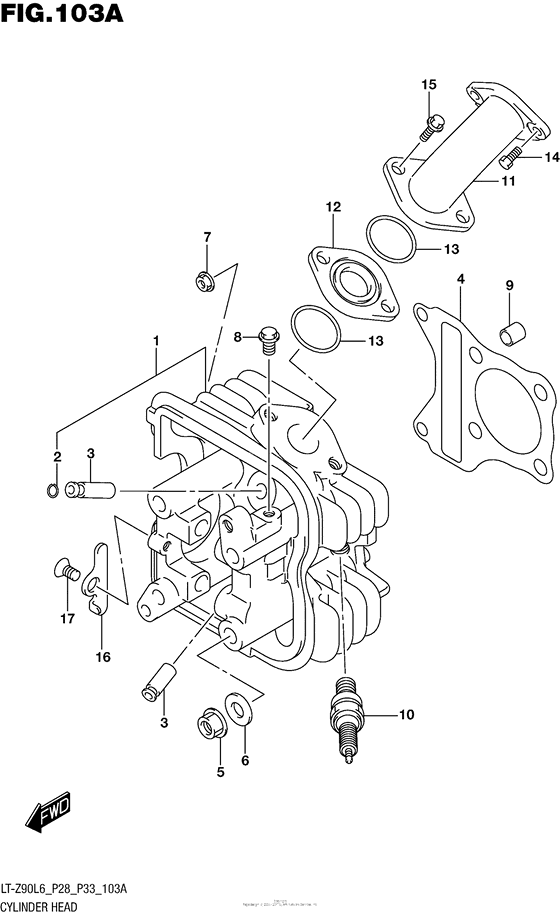

Cylinder head Diagram Suzuki LT-Z90 QuadSport
- Model code
- LT-Z90L6
- Engine Capacity
- 90
- Year
- 2016
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-08H00-000 Head,cylinder |
11110-08H00-000 |
from US $371.68 |
||
|
2
|
2
09381-10004-000 RING,SNAPRing, valve guide |
09381-10004-000 |
from US $1.06 |
||
|
3
|
3
11115-30D70-000 GUIDE,VALVE |
11115-30D70-000 |
from US $34.96 |
||
|
4
|
4
11141-08H00-000 GASKET,CYLINDER HEAD |
11141-08H00-000 |
from US $24.93 |
||
|
5
|
5
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
09160-08039-000 WASHER(8.5X19X2.3) STEEL |
09160-08039-000 |
from US $1.12 |
||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
01547-0610B-000 BOLTBolt, cover |
01547-0610B-000 |
from US $0.77 |
||
|
9
|
9
04211-11129-000 PIN |
04211-11129-000 |
from US $0.95 |
||
|
10-1
|
10-1
09482-00406-000 PLUG,SPARK(CR6HSA) |
09482-00406-000 |
from US $5.25 |
||
|
10-2
|
10-2
09482-00407-000 PLUG,SPARK(U20FSR-U)Plug, spark (u20sr-u) |
09482-00407-000 |
US $6.40 |
||
|
11
|
11
13111-08H00-000 PIPE,INTAKE |
13111-08H00-000 |
from US $30.73 |
||
|
12
|
12
13117-08H00-000 INSULATOR,INTAKE PIPE |
13117-08H00-000 |
from US $5.96 |
||
|
13
|
13
09280-25004-000 O RING(D:2.4,ID:24.7)O-ring, primary shaft |
09280-25004-000 |
from US $1.51 |
||
|
14
|
14
07120-0616B-000 BOLT |
07120-0616B-000 |
from US $0.91 |
||
|
15
|
15
07120-0620B-000 BOLT |
07120-0620B-000 |
from US $0.96 |
||
|
16
|
16
12862-33G00-000 RETAINER,CAMSHAFT |
12862-33G00-000 |
US $2.61 |
||
|
17
|
17
02122-0612B-000 SCREW |
02122-0612B-000 |
from US $0.80 |
