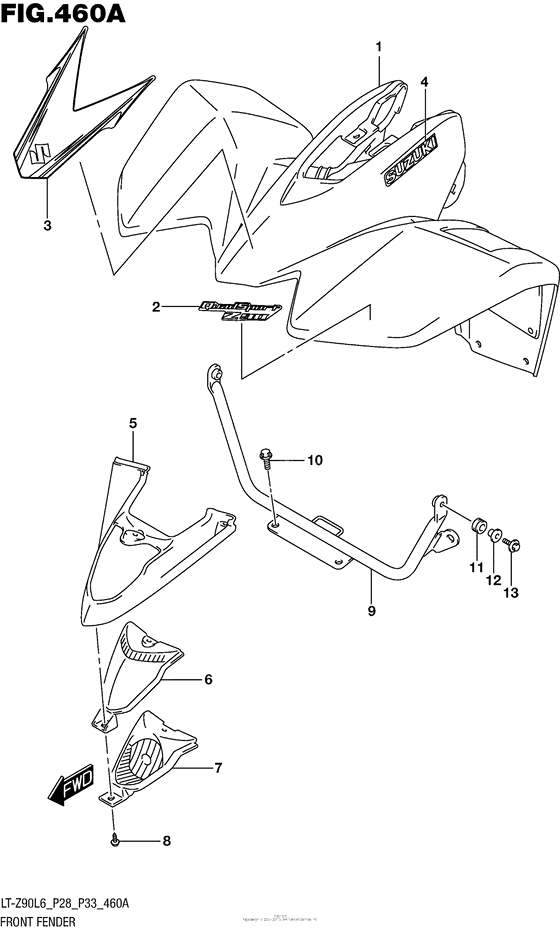

Front Fender Diagram Suzuki LT-Z90 QuadSport
- Model code
- LT-Z90L6
- Engine Capacity
- 90
- Year
- 2016
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-08H00-30H FENDER,FR |
53111-08H00-30H |
from US $307.28 |
||
|
2
|
2
68151-08H00-HEU EMBLEM,FR FENDER |
68151-08H00-HEU |
from US $13.47 |
||
|
3
|
3
68155-08H30-HBT TAPE,FR FENDER FR |
68155-08H30-HBT |
from US $71.39 |
||
|
4
|
4
68131-43G10-8YM EMBLEM,SUZUKI |
68131-43G10-8YM |
from US $7.95 |
||
|
5
|
5
53118-08H00-YPW COVER,FR FENDER CTR |
53118-08H00-YPW |
from US $46 |
||
|
6
|
6
53119-08H00-000 COVER,LENS |
53119-08H00-000 |
from US $26.86 |
||
|
7
|
7
53117-08H00-000 HOLDER,LENS |
53117-08H00-000 |
US $131.92 |
||
|
8
|
8
03241-0516B-000 SCREW |
03241-0516B-000 |
from US $0.76 |
||
|
9
|
9
53210-08H00-000 BRACE,FR FENDER |
53210-08H00-000 |
from US $46 |
||
|
10
|
10
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
11
|
11
09320-09016-000 CUSHIONCushion, holder |
09320-09016-000 |
from US $1.04 |
||
|
12
|
12
09169-06062-000 WASHERWasher |
09169-06062-000 |
from US $1.12 |
||
|
13
|
13
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
