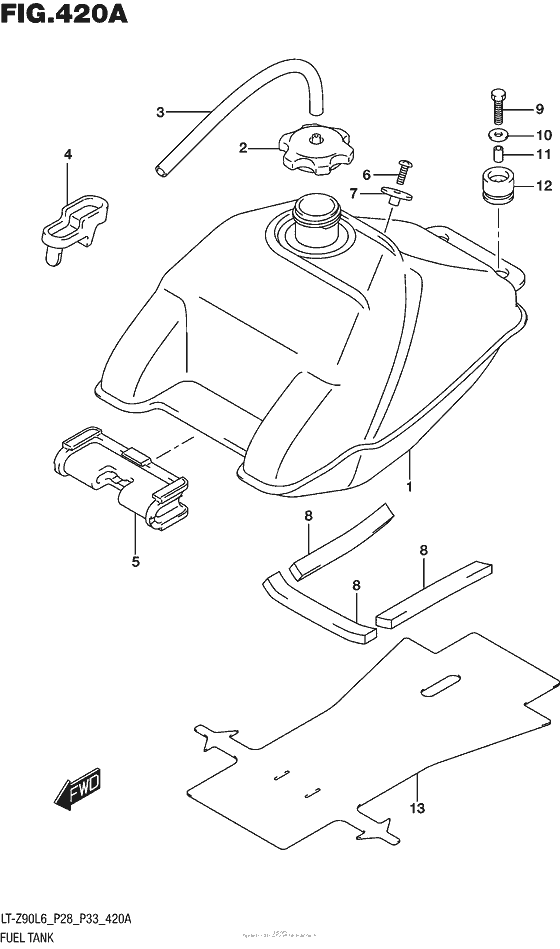

Fuel Tank Diagram Suzuki LT-Z90 QuadSport
- Model code
- LT-Z90L6
- Engine Capacity
- 90
- Year
- 2016
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-08HA0-000 TANK ASSY,FUEL |
44100-08HA0-000 |
from US $1,056 |
||
|
2
|
2
44200-09AA0-000 CAP ASSY,FUEL TANK FILLERCap assy, fuel tank |
44200-09AA0-000 |
from US $33.49 |
||
|
3
|
3
44411-08H00-000 HOSE,FUEL TANK BREATHER |
44411-08H00-000 |
US $12.51 |
||
|
4
|
4
44333-08H00-000 TRAY,FUEL TANK BREATHER |
44333-08H00-000 |
US $3.31 |
||
|
5
|
5
44541-08H00-000 CUSHION,FUEL TANK FR |
44541-08H00-000 |
from US $15.64 |
||
|
6
|
6
02142-0620A-000 SCREW |
02142-0620A-000 |
from US $0.68 |
||
|
7
|
7
44132-27C01-000 HOOK,SEAT FR |
44132-27C01-000 |
from US $5.04 |
||
|
8
|
8
44543-08H00-000 CUSHION,FUEL TANK LWR |
44543-08H00-000 |
US $4.45 |
||
|
9
|
9
01500-0625A-000 BOLTBolt, gear shift arm |
01500-0625A-000 |
from US $0.80 |
||
|
10
|
10
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
11
|
11
09180-06267-000 SPACER(6.5X9X12.5) |
09180-06267-000 |
from US $5.59 |
||
|
12
|
12
44541-43F00-000 CUSHION,FUEL TANK RR |
44541-43F00-000 |
from US $3.57 |
||
|
13
|
13
44542-08H00-000 RUBBER,FUEL TANK LWR |
44542-08H00-000 |
US $30.54 |
