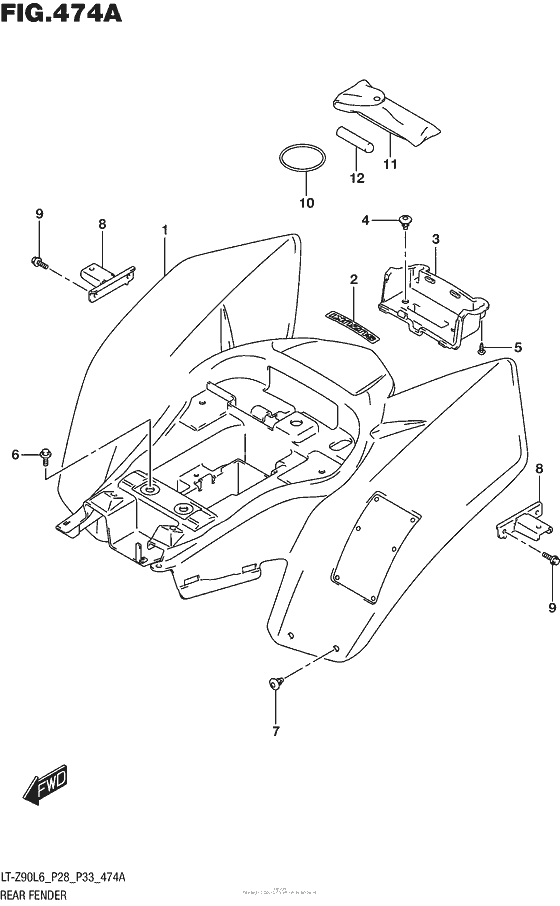

Rear Fender Diagram Suzuki LT-Z90 QuadSport
- Model code
- LT-Z90L6
- Engine Capacity
- 90
- Year
- 2016
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-08H00-30H FENDER,RR |
63111-08H00-30H |
from US $406.53 |
||
|
2
|
2
68721-09A00-8YM EMBLEM,SUZUKIEmblem, "suzuki" |
68721-09A00-8YM |
from US $7.95 |
||
|
3
|
3
63121-08H00-000 FENDER,RR LWR |
63121-08H00-000 |
US $16.30 |
||
|
4
|
4
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
5
|
5
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
6
|
6
09111-06081-000 BOLT(6X18)Bolt, center |
09111-06081-000 |
from US $3.74 |
||
|
7
|
7
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
8
|
8
63130-08H00-000 REINF,RR FENDER |
63130-08H00-000 |
from US $12.48 |
||
|
9
|
9
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
10
|
10
09280-70004-000 O RING(D:3.53,ID:69.44) |
09280-70004-000 |
from US $2.08 |
||
|
11
|
11
96510-08H00-000 TOOL ASSY |
96510-08H00-000 |
from US $36.25 |
||
|
12
|
12
96200-18A02-000 GAUGE ASSY,AIR PRESSUREGuage assy, air |
96200-18A02-000 |
US $67.61 |
