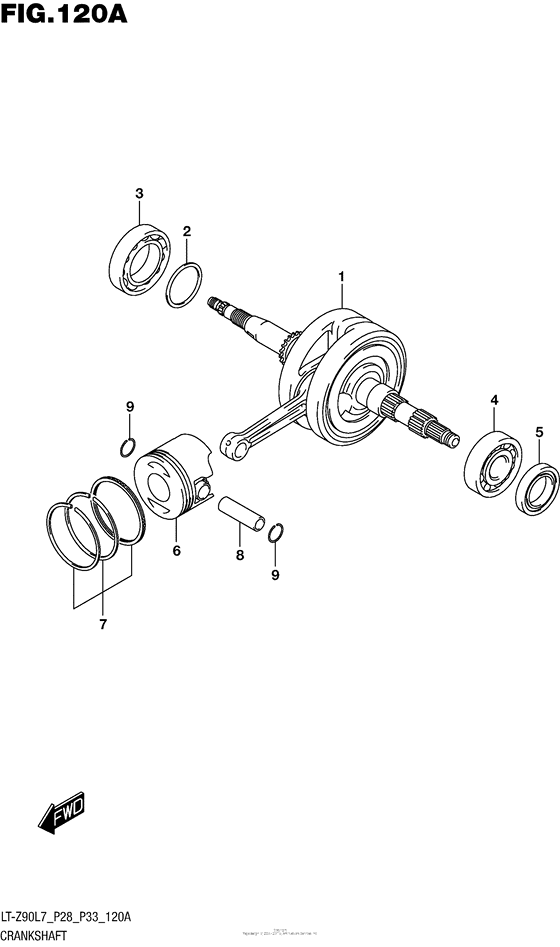

Crankshaft Diagram Suzuki LT-Z90 QuadSport
- Model code
- LT-Z90L7
- Engine Capacity
- 90
- Year
- 2017
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-08H02-000 CRANKSHAFT ASSY |
12200-08H02-000 |
from US $397.76 |
||
|
2-1
|
2-1
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) |
09181-35101-000 |
from US $1.35 |
||
|
2-2
|
2-2
09181-35025-000 SHIM(35X42X0.55) |
09181-35025-000 |
US $26.90 |
||
|
2-3
|
2-3
09181-35103-000 SHIM(35X42X0.6) |
09181-35103-000 |
US $26.90 |
||
|
2-4
|
2-4
09181-35026-000 SHIM(35X42X0.65) |
09181-35026-000 |
US $26.90 |
||
|
2-5
|
2-5
09181-35104-000 SHIM(35X42X0.7) |
09181-35104-000 |
US $26.90 |
||
|
2-6
|
2-6
09181-35105-000 SHIM(35X42X0.75) |
09181-35105-000 |
US $26.90 |
||
|
2-7
|
2-7
09181-35106-000 SHIM(35X42X0.8) |
09181-35106-000 |
US $26.90 |
||
|
2-8
|
2-8
09181-35107-000 SHIM(35X42X0.85) |
09181-35107-000 |
US $26.90 |
||
|
2-9
|
2-9
09181-35108-000 SHIM(35X42X0.9) |
09181-35108-000 |
US $26.90 |
||
|
2-10
|
2-10
09181-35109-000 SHIM(35X42X0.95) |
09181-35109-000 |
US $26.90 |
||
|
2-11
|
2-11
09181-35110-000 SHIM(35X42X1) |
09181-35110-000 |
from US $2.13 |
||
|
2-12
|
2-12
09181-35113-000 SHIM(35X42X1.05) |
09181-35113-000 |
US $26.90 |
||
|
2-13
|
2-13
09181-35116-000 SHIM(35X42X1.1) |
09181-35116-000 |
US $26.90 |
||
|
2-14
|
2-14
09181-35118-000 SHIM(35X42X1.15) |
09181-35118-000 |
from US $1.94 |
||
|
2-15
|
2-15
09181-35120-000 SHIM(35X42X1.2) |
09181-35120-000 |
US $26.90 |
||
|
2-16
|
2-16
09181-35123-000 SHIM(35X42X1.25) |
09181-35123-000 |
US $26.90 |
||
|
2-17
|
2-17
09181-35125-000 SHIM(35X42X1.3) |
09181-35125-000 |
US $21.70 |
||
|
3
|
3
09262-35063-000 BEARING(35X62X14) |
09262-35063-000 |
from US $26.13 |
||
|
4
|
4
09262-25122-000 BEARING(25X52X15)Bearing, cntr shaft rh |
09262-25122-000 |
from US $26.68 |
||
|
5
|
5
09283-25100-000 SEAL,OIL(25X42X6) |
09283-25100-000 |
from US $6.29 |
||
|
6
|
6
12111-08H00-0F0 PISTON |
12111-08H00-0F0 |
from US $42.41 |
||
|
7
|
7
12140-08H00-000 RING SET,PISTON |
12140-08H00-000 |
from US $47.61 |
||
|
8
|
8
12151-08H00-000 PIN,PISTON |
12151-08H00-000 |
US $19.11 |
||
|
9
|
9
09381-14001-000 PISTON PIN CIRC |
09381-14001-000 |
from US $1.06 |
