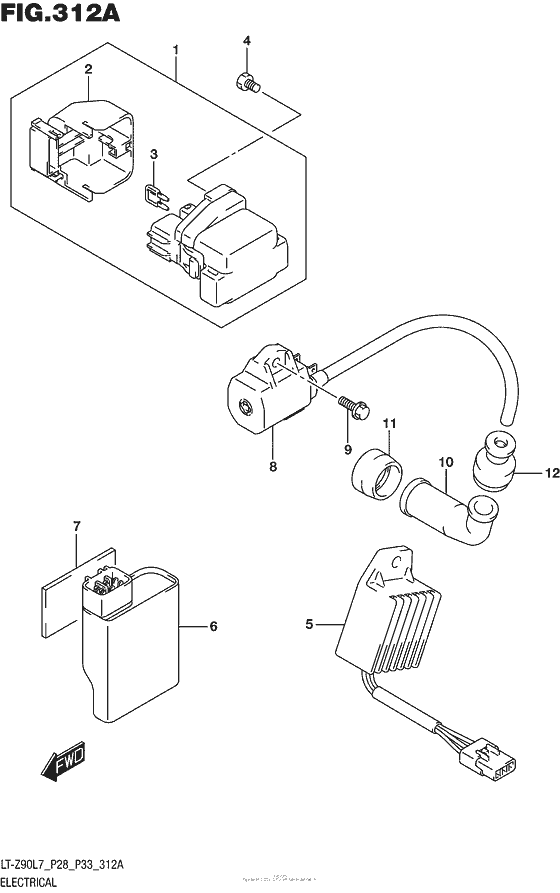

Electrical Diagram Suzuki LT-Z90 QuadSport
- Model code
- LT-Z90L7
- Engine Capacity
- 90
- Year
- 2017
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-08H00-000 RELAY ASSY,STARTING MOTOR |
31800-08H00-000 |
from US $58.51 |
||
|
2
|
2
31861-38G00-000 COVERCover, starter relay |
31861-38G00-000 |
from US $2.43 |
||
|
3
|
3
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.06 |
||
|
4
|
4
09128-06013-000 SCREW(6X8)Screw |
09128-06013-000 |
from US $1.94 |
||
|
5
|
5
32800-08H01-000 Rectifier Assy |
32800-08H01-000 |
from US $31.54 |
||
|
6
|
6
32900-08H00-000 CDI UNIT |
32900-08H00-000 |
US $450.23 |
||
|
7
|
7
33652-36000-000 CUSHION(30X50X3)Protector, cdi (30x50x3.0) |
33652-36000-000 |
from US $1.35 |
||
|
8
|
8
33410-36G00-000 COIL ASSY,IGNITION |
33410-36G00-000 |
from US $64.40 |
||
|
9
|
9
02162-0620B-000 SCREWBolt, rectifier |
02162-0620B-000 |
from US $3.23 |
||
|
10
|
10
33510-20E00-000 CAP ASSY,SPARK PLUG |
33510-20E00-000 |
from US $21.12 |
||
|
11
|
11
33541-47D00-000 SEAL,SPARK PLUGSeal, spark plug |
33541-47D00-000 |
from US $4.26 |
||
|
12
|
12
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord |
33542-38B00-000 |
from US $1.52 |
