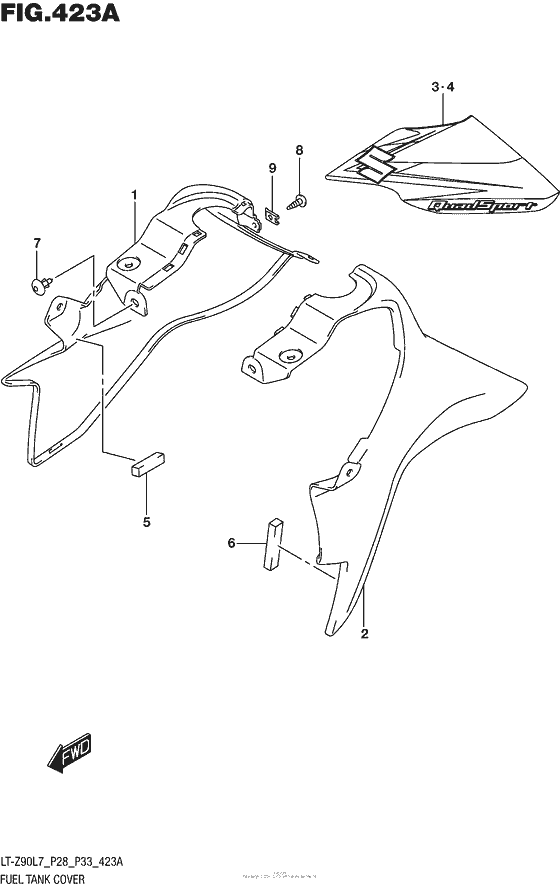

Fuel Tank Cover Diagram Suzuki LT-Z90 QuadSport
- Model code
- LT-Z90L7
- Engine Capacity
- 90
- Year
- 2017
- Sales region
- Canada/California
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44271-08H00-YU1 COVER,FUEL TANK,R |
44271-08H00-YU1 |
from US $83.17 |
||
|
2
|
2
44272-08H00-YU1 COVER,FUEL TANK,L |
44272-08H00-YU1 |
from US $83.17 |
||
|
3
|
3
68115-08H30-HBP TAPE,FUEL TANK COVER,R |
68115-08H30-HBP |
from US $76.18 |
||
|
4
|
4
68116-08H30-HBP TAPE,FUEL TANK COVER,L |
68116-08H30-HBP |
from US $76.18 |
||
|
5
|
5
44544-08H00-000 CUSHION,FUEL TANK COVER |
44544-08H00-000 |
US $2.80 |
||
|
6
|
6
44545-08H00-000 CUSHION,TANK COVER |
44545-08H00-000 |
from US $3.68 |
||
|
7
|
7
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
8
|
8
03241-1512A-000 SCREW |
03241-1512A-000 |
US $11.40 |
||
|
9
|
9
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
