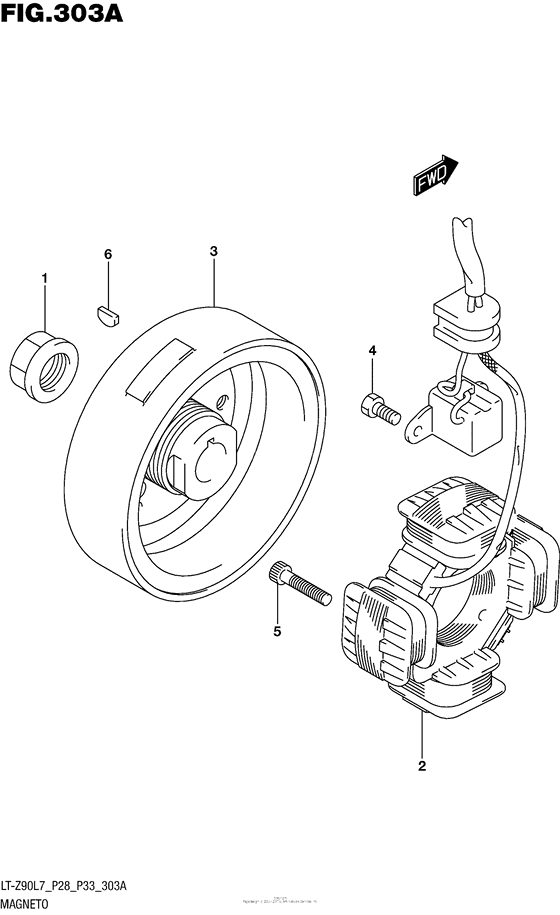

Magneto Diagram Suzuki LT-Z90 QuadSport
- Model code
- LT-Z90L7
- Engine Capacity
- 90
- Year
- 2017
- Sales region
- Canada/California
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09159-14015-000 NUT |
09159-14015-000 |
from US $1.71 |
||
|
2
|
2
32101-08H00-000 STATOR ASSY |
32101-08H00-000 |
from US $176.64 |
||
|
3
|
3
32102-08H00-000 ROTOR ASSY |
32102-08H00-000 |
US $115.18 |
||
|
4
|
4
09100-05019-000 BOLT(5X10)Bolt, sensor (5x10) |
09100-05019-000 |
from US $0.91 |
||
|
5
|
5
07130-0625B-000 BOLT |
07130-0625B-000 |
from US $0.91 |
||
|
6
|
6
08341-31039-000 KEY |
08341-31039-000 |
from US $1.60 |
