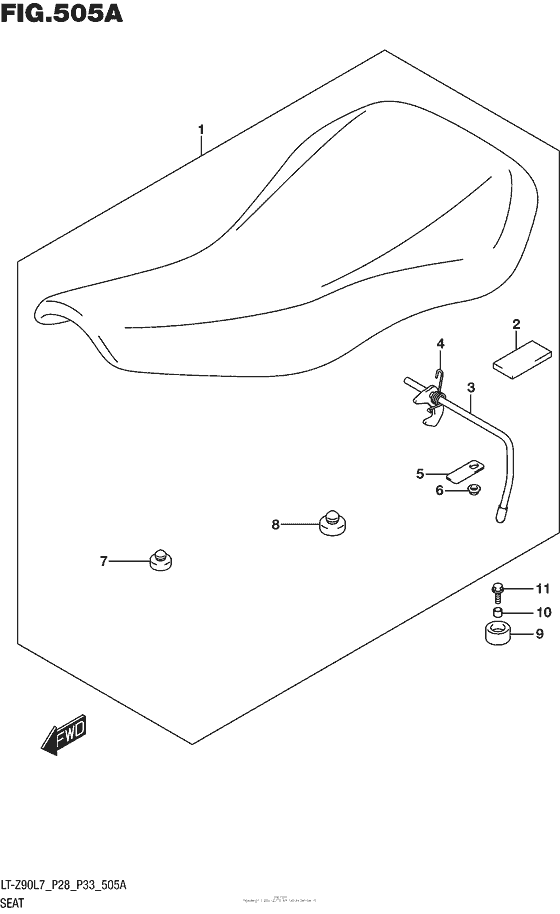

Seat (Lt-Z90L7 P28) Diagram Suzuki LT-Z90 QuadSport
- Model code
- LT-Z90L7
- Engine Capacity
- 90
- Year
- 2017
- Sales region
- Canada/California
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-08H10-6BY SEAT ASSY |
45100-08H10-6BY |
US $237.36 |
||
|
2
|
2
45149-08H00-000 CUSHION,SEAT MOUNT BOSS |
45149-08H00-000 |
US $3.97 |
||
|
3
|
3
45210-08H00-000 CLAMP,SEAT LOCK |
45210-08H00-000 |
US $24.66 |
||
|
4
|
4
45135-43F00-000 SPRING |
45135-43F00-000 |
from US $2.80 |
||
|
5
|
5
45222-43G00-000 PLATE,SEAT LOCK |
45222-43G00-000 |
from US $2.80 |
||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
09321-10012-000 CUSHION |
09321-10012-000 |
from US $1.67 |
||
|
8
|
8
45148-08H00-000 CUSHION |
45148-08H00-000 |
US $3.68 |
||
|
9
|
9
45141-08H00-000 CUSHION,SEAT MOUNT RR |
45141-08H00-000 |
from US $2.94 |
||
|
10
|
10
09180-06261-000 SPACER(6.5X9X8) |
09180-06261-000 |
from US $1.78 |
||
|
11
|
11
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
