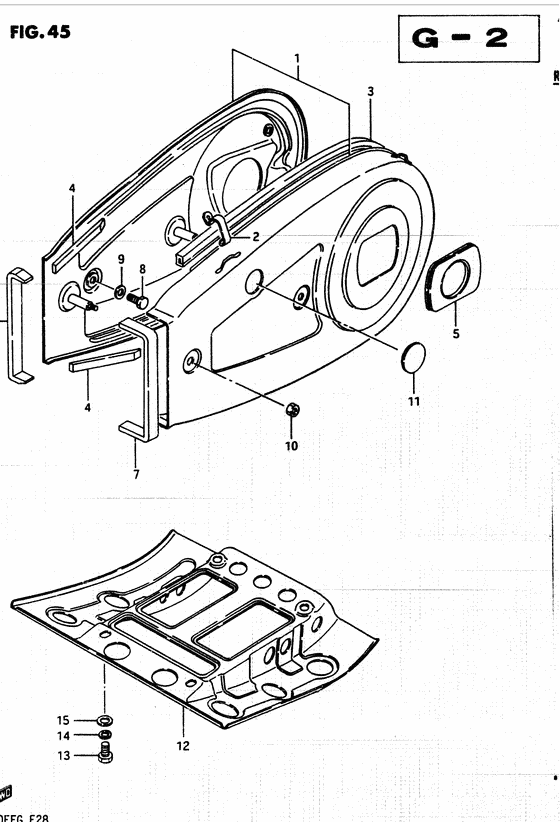

Chain case Diagram Suzuki LT250EF
- Model code
- LT250EFF
- Year
- 1985
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
61300-24842-000
Chain case set
Model f/f2 |
61300-24842-000 |
— | ||
replacement | |||||
1
|
1
61300-24843-000
Case set,chain
Model f/f2 |
61300-24843-000 |
— | ||
1
|
1
61300-24843-000
Case set,chain
Model g |
61300-24843-000 |
— | ||
2
|
2
61328-24500-000
CLAMP,CHAIN CASE
|
61328-24500-000 |
— | ||
3
|
3
61336-24500-000
Seal, outer
|
61336-24500-000 |
— | ||
replacement | |||||
3
|
3
61336-24300-000
SEAL,OUTER CHAIN CASE
|
61336-24300-000 |
— | ||
4
|
4
61337-24500-000
SEAL,CHAIN CASE FR
|
61337-24500-000 |
— | ||
5
|
5
61378-24501-000 SEAL,CHAIN CASE RRSeal, rear |
61378-24501-000 |
from US $12.36 |
||
6
|
6
61376-24501-000
Seal chain case
|
61376-24501-000 |
— | ||
7
|
7
61377-24500-000
Seal chain case
|
61377-24500-000 |
— | ||
8
|
8
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
replacement | |||||
8
|
8
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
9
|
9
08321-31066-000
Lock washer
|
08321-31066-000 |
— | ||
replacement | |||||
9
|
9
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
10
|
10
08319-31066-000
Nut
|
08319-31066-000 |
— | ||
replacement | |||||
10
|
10
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
11
|
11
09250-30001-000
CAP(OD:40)
|
09250-30001-000 |
— | ||
replacement | |||||
11
|
11
09250-30024-000 Cap(Od:40) |
09250-30024-000 |
US $11.80 |
||
12
|
12
61390-24500-000
Guard, under
Model f/f2 |
61390-24500-000 |
— | ||
replacement | |||||
12
|
12
61390-24503-000
New Genuine Part
Model f/f2 |
61390-24503-000 |
— | ||
12
|
12
61390-24502-000
Guard, under
Model g |
61390-24502-000 |
— | ||
replacement | |||||
12
|
12
61390-24503-000
New Genuine Part
Model g |
61390-24503-000 |
— | ||
13
|
13
01107-08126-000
Bolt 8x12
|
01107-08126-000 |
— | ||
replacement | |||||
13
|
13
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
14
|
14
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
replacements | |||||
14
|
14
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
14
|
14
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
15
|
15
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
replacements | |||||
15
|
15
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
15
|
15
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
