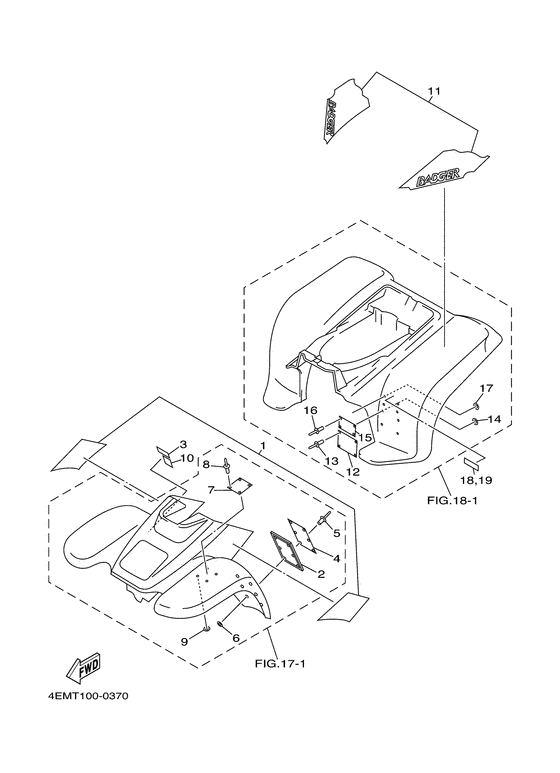

Emblem.label 2 Diagram Yamaha BADGER
- Model code
- 4EMT
- Engine Capacity
- 79
- Year
- 2000
- Sales region
- Australia (020)
- Colour
- Radical White (RW; 00UJ)
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4EM-21570-20-00
Graphic Set, Front
|
4EM-21570-20-00 |
— | ||
|
02
|
02
4EM-21581-00-00 Stay, Plate Fitting 1 |
4EM-21581-00-00 |
US $48.92 |
||
|
04
|
04
5FE-21568-11-00 Label, Warning |
5FE-21568-11-00 |
from US $25.80 |
||
|
05
|
05
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
06
|
06
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
07
|
07
4EM-21697-31-00 Label, Caution 2 |
4EM-21697-31-00 |
from US $23.83 |
||
|
08
|
08
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
08
|
08
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
09
|
09
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
11
|
11
4EM-2165A-20-00
Graphic Set, Rear Fender
|
4EM-2165A-20-00 |
— | ||
|
12
|
12
4EM-21696-11-00 Label, Caution |
4EM-21696-11-00 |
from US $28.05 |
||
|
13
|
13
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
13
|
13
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
14
|
14
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
15
|
15
5FE-2151H-01-00 Label 5 |
5FE-2151H-01-00 |
from US $23.80 |
||
|
16
|
16
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
16
|
16
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
17
|
17
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
18
|
18
3HP-21668-00-00
Label, Tire
English |
3HP-21668-00-00 |
— | ||
