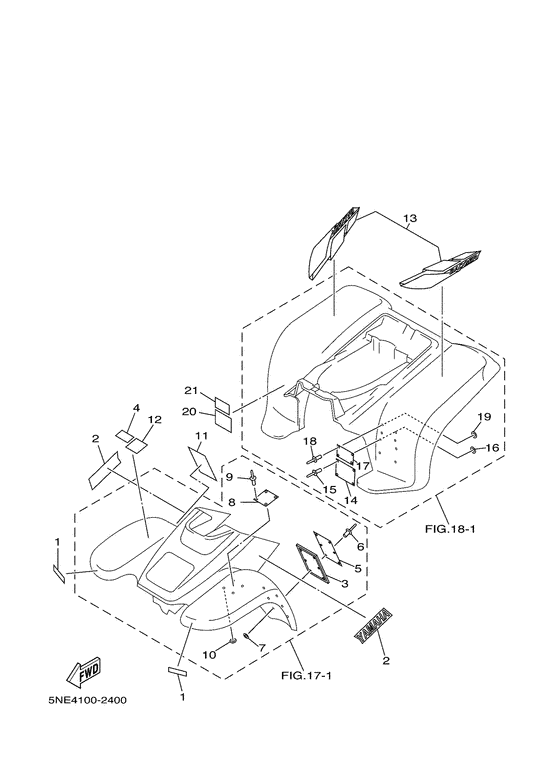

Emblem.label 5 Diagram Yamaha BADGER
- Model code
- 5NE4
- Engine Capacity
- 79
- Year
- 2002
- Sales region
- Japan (030)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GD-2153E-00-00 Emblem, Yamaha |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
01
|
01
3GD-2153E-01-00 EMBLEM YAMAHA |
3GD-2153E-01-00 |
from US $5.07 |
||
|
02
|
02
99241-00180-00 Emblem, Yamaha |
99241-00180-00 |
from US $17.80 |
||
|
03
|
03
4EM-21581-20-00 Stay, Plate Fitting 1 |
4EM-21581-20-00 |
from US $21.25 |
||
|
04
|
04
4EM-21578-C0-00
Emblem
|
4EM-21578-C0-00 |
— | ||
|
05
|
05
5FE-21568-11-00 Label, Warning |
5FE-21568-11-00 |
from US $25.80 |
||
|
06
|
06
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
07
|
07
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
08
|
08
4EM-21697-31-00 Label, Caution 2 |
4EM-21697-31-00 |
from US $23.83 |
||
|
09
|
09
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
10
|
10
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
11
|
11
4SH-21568-00-00 Label, Warning |
4SH-21568-00-00 |
US $21.15 |
||
|
12
|
12
4EM-21697-00-00 Label, Caution 2 |
4EM-21697-00-00 |
US $15.16 |
||
|
13
|
13
5NE-2165B-00-00
Graphic Set,rear Fender
|
5NE-2165B-00-00 |
— | ||
|
14
|
14
4EM-21696-11-00 Label, Caution |
4EM-21696-11-00 |
from US $28.05 |
||
|
15
|
15
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
16
|
16
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
17
|
17
5FE-2151H-01-00 Label 5 |
5FE-2151H-01-00 |
from US $23.80 |
||
|
18
|
18
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
19
|
19
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
20
|
20
4EM-21696-00-00
Label, Caution
|
4EM-21696-00-00 |
— | ||
|
21
|
21
4LB-2151H-01-00 Label 5 |
4LB-2151H-01-00 |
US $11.19 |
||
