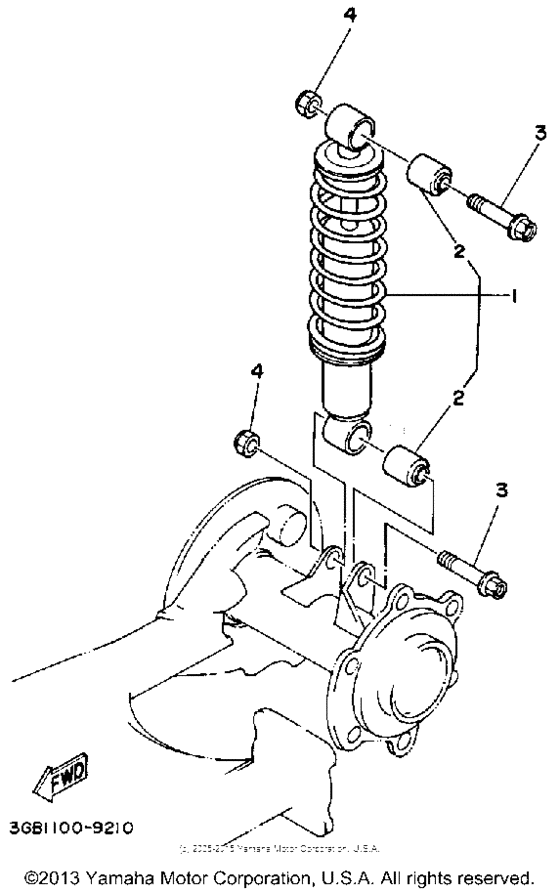

Rear shocks Diagram Yamaha BADGER
- Model code
- YFM80D
- Engine Capacity
- 79
- Year
- 1992
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GB-22210-00-33 Shock Absorber Assy, Rear |
3GB-22210-00-33 |
from US $290.14 |
||
|
2
|
2
59V-22216-00-00 Bush, Rear Shock Absorber |
59V-22216-00-00 |
from US $15.58 |
||
|
3
|
3
90105-10388-00 Bolt, Flange |
90105-10388-00 |
from US $3.54 |
||
|
4
|
4
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.24 |
