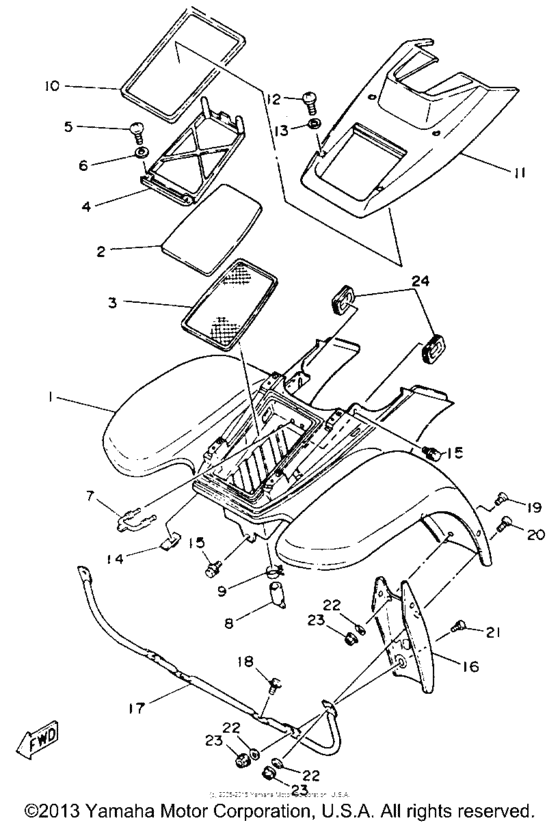

Front fender Diagram Yamaha BADGER
- Model code
- YFM80E
- Engine Capacity
- 79
- Year
- 1993
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4EM-21511-00-00
Fender, Front
|
4EM-21511-00-00 |
— | ||
|
2
|
2
55X-14451-00-00 Element, Air Cleaner |
55X-14451-00-00 |
from US $4.68 |
||
|
3
|
3
55X-14472-01-00 Plate, Element |
55X-14472-01-00 |
from US $26.35 |
||
|
4
|
4
55X-14458-00-00 Guide |
55X-14458-00-00 |
from US $7.37 |
||
|
5
|
5
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
6
|
6
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
7
|
7
55X-14436-00-00 Hook |
55X-14436-00-00 |
US $4.11 |
||
|
8
|
8
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $2.66 |
||
|
9
|
9
904-67220-80-00 Clip |
904-67220-80-00 |
from US $1.56 |
||
|
10
|
10
2HX-14452-00-00 Seal |
2HX-14452-00-00 |
from US $9.49 |
||
| replacement | |||||
|
10
|
10
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $7.62 |
||
|
11
|
11
4EM-21551-00-00
Over,fender (Pink)
|
4EM-21551-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4EM-21551-01-00
Fender, Over
|
4EM-21551-01-00 |
— | ||
|
12
|
12
98506-05025-00 Screw, Pan Head |
98506-05025-00 |
from US $1.42 |
||
| replacements | |||||
|
12
|
12
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
12
|
12
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
13
|
13
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
14
|
14
55X-21535-00-00 Nut 1 |
55X-21535-00-00 |
from US $3.97 |
||
|
15
|
15
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
15
|
15
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
15
|
15
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
16
|
16
2HX-21521-01-00 Flap, Front Fender |
2HX-21521-01-00 |
US $45.27 |
||
|
17
|
17
3GB-21513-00-00
Stay, Fender 1
|
3GB-21513-00-00 |
— | ||
|
18
|
18
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
18
|
18
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
18
|
18
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
19
|
19
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
20
|
20
90154-05052-00 Screw, Binding |
90154-05052-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
90154-05011-00 Screw, Binding |
90154-05011-00 |
from US $1.70 |
||
|
21
|
21
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
22
|
22
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
23
|
23
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
23
|
23
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
24
|
24
2HX-14437-01-00 Duct |
2HX-14437-01-00 |
from US $5.10 |
||
