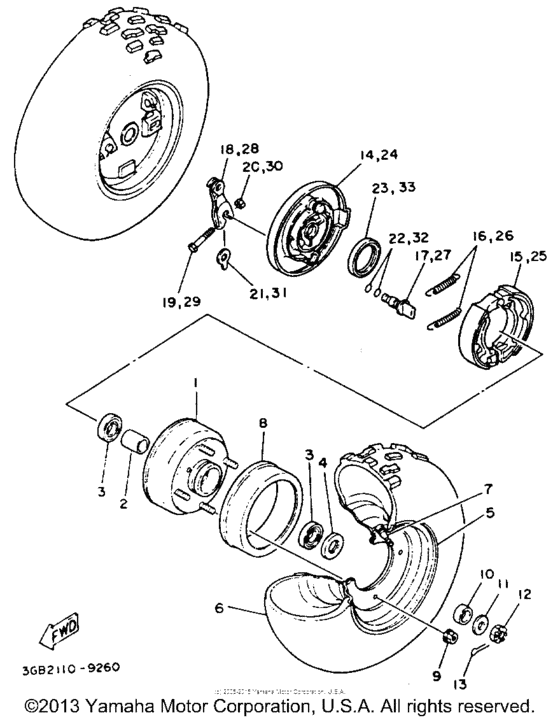

Front wheel Diagram Yamaha BADGER
- Model code
- YFM80E
- Engine Capacity
- 79
- Year
- 1993
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2FJ-25111-00-00 Hub, Front |
2FJ-25111-00-00 |
US $98.25 |
||
|
2
|
2
3FA-25117-00-00 Spacer, Bearing |
3FA-25117-00-00 |
from US $7.65 |
||
| replacement | |||||
|
2
|
2
2FJ-25117-00-00 Spacer, Bearing |
2FJ-25117-00-00 |
from US $7.28 |
||
|
3
|
3
93306-00302-00 Brg,r-B 6003 35Mm 39G Ky |
93306-00302-00 |
from US $22.28 |
||
| replacement | |||||
|
3
|
3
933-06003-15-00 Bearing(2Jn) |
933-06003-15-00 |
from US $24.09 |
||
|
4
|
4
93102-23275-00 Oil Seal |
93102-23275-00 |
from US $7.08 |
||
|
5
|
5
2FJ-25180-00-35 Wheel Comp |
2FJ-25180-00-35 |
from US $83.50 |
||
|
6
|
6
94107-073Y9-00 Tire (At18X7-7 *kt586T/l N)N DUNLOP |
94107-073Y9-00 |
US $160.27 |
||
| replacement | |||||
|
6
|
6
2D3-2510K-09-00 TireN DUNLOP |
2D3-2510K-09-00 |
from US $114.67 |
||
|
7
|
7
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
8
|
8
3GB-25185-00-00 Ring 1 |
3GB-25185-00-00 |
from US $14.10 |
||
|
9
|
9
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
9
|
9
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
9
|
9
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
10
|
10
90387-175R2-00 Collar |
90387-175R2-00 |
from US $4.68 |
||
|
11
|
11
90201-14586-00 Washer, Plate |
90201-14586-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
12
|
12
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
12
|
12
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
13
|
13
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
13
|
13
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
14
|
14
2FJ-25121-00-00 Plate, Brake Shoe |
2FJ-25121-00-00 |
from US $83.72 |
||
|
15
|
15
3AC-W2536-00-00 Brake Shoe Kit |
3AC-W2536-00-00 |
from US $23.89 |
||
| replacement | |||||
|
15
|
15
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
16
|
16
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
17
|
17
3GB-25151-00-00 Camshaft |
3GB-25151-00-00 |
from US $22.32 |
||
|
18
|
18
2FJ-25155-00-00 Lever, Camshaft 1 |
2FJ-25155-00-00 |
US $17.62 |
||
|
19
|
19
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
21
|
21
52H-2513A-00-00 Plate, Indicator |
52H-2513A-00-00 |
from US $2.69 |
||
|
22
|
22
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.34 |
||
|
23
|
23
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.37 |
||
|
24
|
24
2FJ-25169-00-00 Plate, Brake Shoe 2 |
2FJ-25169-00-00 |
from US $63.25 |
||
|
25
|
25
3AC-W2536-00-00 Brake Shoe Kit |
3AC-W2536-00-00 |
from US $23.89 |
||
| replacement | |||||
|
25
|
25
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
26
|
26
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
27
|
27
3GB-25151-00-00 Camshaft |
3GB-25151-00-00 |
from US $22.32 |
||
|
28
|
28
2FJ-25156-00-00 Lever, Camshaft 2 |
2FJ-25156-00-00 |
from US $8.98 |
||
|
29
|
29
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
30
|
30
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
31
|
31
52H-2513A-00-00 Plate, Indicator |
52H-2513A-00-00 |
from US $2.69 |
||
|
32
|
32
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.34 |
||
|
33
|
33
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.37 |
||
