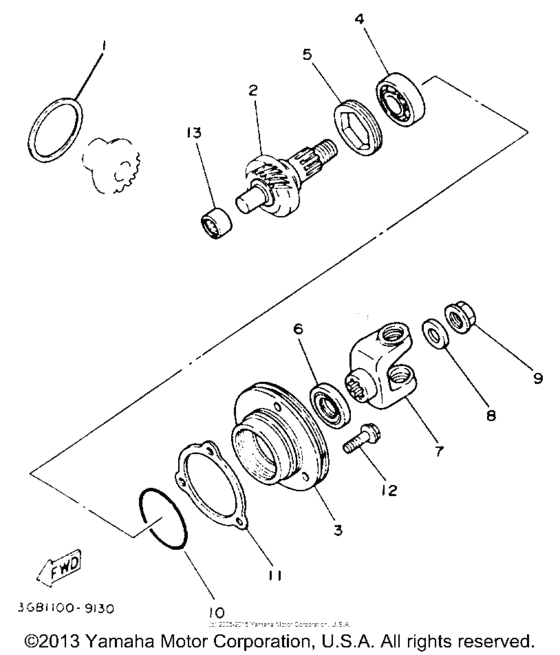

Middle drive gear Diagram Yamaha BADGER
- Model code
- YFM80E
- Engine Capacity
- 79
- Year
- 1993
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22F-17537-00-00 Shim, Thrust |
22F-17537-00-00 |
US $2.50 |
||
|
2
|
2
3GB-17508-00-00 Middle Driven Gear Comp |
3GB-17508-00-00 |
US $142.47 |
||
|
3
|
3
22F-17551-00-00 Housing, Bearing |
22F-17551-00-00 |
from US $36.42 |
||
|
4
|
4
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
5
|
5
90179-42480-00 Nut(55X) |
90179-42480-00 |
from US $7.64 |
||
|
6
|
6
93101-24110-00 Oil Seal |
93101-24110-00 |
from US $5.14 |
||
|
7
|
7
22F-17556-01-00 Yoke, Joint |
22F-17556-01-00 |
from US $77.74 |
||
|
8
|
8
90201-125F7-00 Washer, Plate |
90201-125F7-00 |
from US $2.55 |
||
| replacement | |||||
|
8
|
8
90201-12027-00 Washer, Plate |
90201-12027-00 |
from US $2.32 |
||
|
9
|
9
90179-12421-00 Nut |
90179-12421-00 |
from US $4.34 |
||
| replacement | |||||
|
9
|
9
90179-12657-00 Nut |
90179-12657-00 |
from US $6.52 |
||
|
10
|
10
93210-50553-00 O-Ring |
93210-50553-00 |
from US $3.40 |
||
|
11
|
11
22F-17531-00-05 Shim, Pinion0.50T UR |
22F-17531-00-05 |
from US $4.39 |
||
| replacement | |||||
|
11
|
11
22F-17531-00-50 Shim Pinion (0.50)0.50T UR |
22F-17531-00-50 |
from US $4.39 |
||
|
11
|
11
22F-17531-00-30
Shim Pinion (0.30)
0.30T UR |
22F-17531-00-30 |
— | ||
|
11
|
11
22F-17531-00-01 Shim, Pinion0.15T UR |
22F-17531-00-01 |
US $3.24 |
||
| replacement | |||||
|
11
|
11
22F-17531-00-15
Shim Pinion (0.15)
0.15T UR |
22F-17531-00-15 |
— | ||
|
12
|
12
95811-06020-00 Bolt, Flange |
95811-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
12
|
12
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
13
|
13
93317-21236-00 Bearing |
93317-21236-00 |
from US $17.14 |
||
