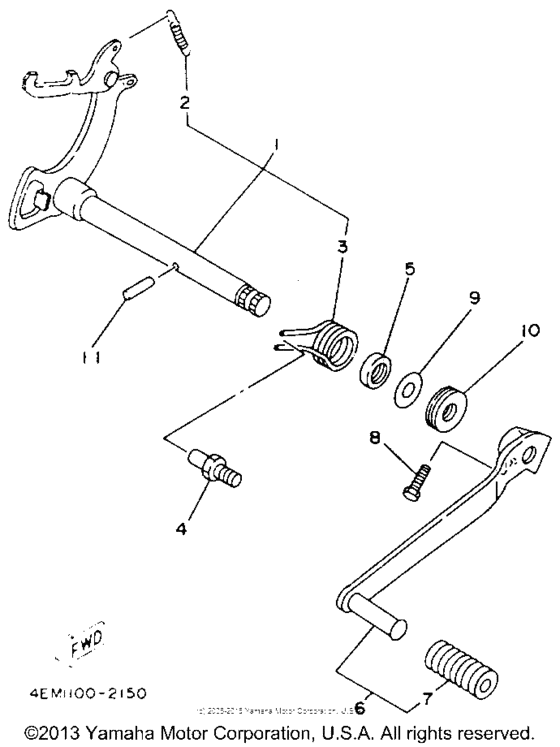

Shift shaft Diagram Yamaha BADGER
- Model code
- YFM80E
- Engine Capacity
- 79
- Year
- 1993
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22F-18101-02-00 Shift Shaft Assy |
22F-18101-02-00 |
from US $59.30 |
||
| replacement | |||||
|
1
|
1
22F-18101-03-00 Shift Shaft Assy |
22F-18101-03-00 |
from US $64.42 |
||
|
2
|
2
90506-08122-00 Spring, Tension |
90506-08122-00 |
from US $2.13 |
||
|
3
|
3
90508-32563-00 Spring, Torsion |
90508-32563-00 |
from US $6.23 |
||
|
4
|
4
278-18127-00-00 Stopper, Screw |
278-18127-00-00 |
from US $8.50 |
||
| replacement | |||||
|
4
|
4
278-18127-01-00 Stopper, Screw |
278-18127-01-00 |
from US $8.50 |
||
|
5
|
5
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.53 |
||
|
6
|
6
2HX-18110-00-00 Shift Pedal Assy |
2HX-18110-00-00 |
from US $38.23 |
||
| replacement | |||||
|
6
|
6
2HX-18110-10-00 Shift Pedal Assy |
2HX-18110-10-00 |
from US $39.26 |
||
|
7
|
7
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
8
|
8
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
9
|
9
90201-127F4-00 Washer, Plate90201-127F4-00 |
90201-127F4-00 |
from US $3.40 |
||
| replacement | |||||
|
9
|
9
90201-126L0-00 Washer, Plate (90201-127F4-00)90201-127F4-00 |
90201-126L0-00 |
from US $3.40 |
||
|
10
|
10
93341-21213-00 Bearing |
93341-21213-00 |
from US $11.95 |
||
| replacement | |||||
|
10
|
10
933-40212-09-00 Bearing, Thrust(2Fl) |
933-40212-09-00 |
from US $13.88 |
||
|
11
|
11
93604-20156-00 Pin, Dowel |
93604-20156-00 |
from US $1.56 |
||
