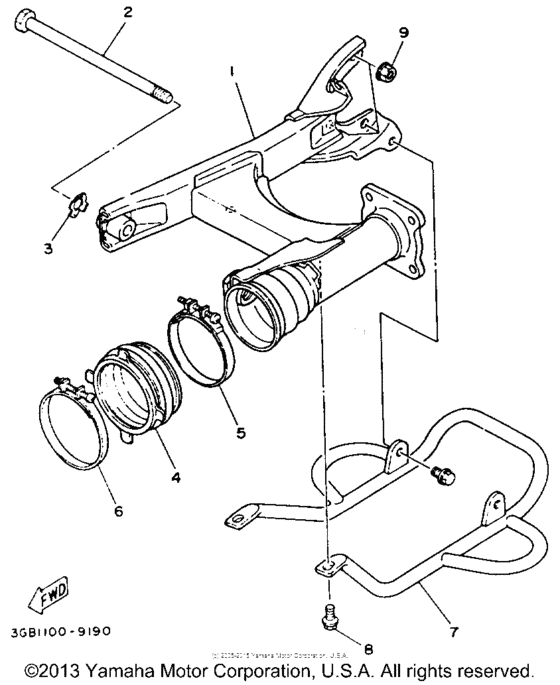

Swing arm Diagram Yamaha BADGER
- Model code
- YFM80E
- Engine Capacity
- 79
- Year
- 1993
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GB-22110-00-33 Rear Arm Comp |
3GB-22110-00-33 |
from US $372.31 |
||
|
2
|
2
22W-25181-01-00 Axle, Wheel |
22W-25181-01-00 |
from US $18.28 |
||
|
3
|
3
3GB-22156-00-00 Washer, Plate |
3GB-22156-00-00 |
US $2.12 |
||
|
4
|
4
55X-22189-00-00 Boot, Rubber |
55X-22189-00-00 |
from US $13.76 |
||
|
5
|
5
90460-75020-00 Hose Clamp Assy |
90460-75020-00 |
from US $9.78 |
||
| replacement | |||||
|
5
|
5
904-50750-02-00 Hose Clamp Assy |
904-50750-02-00 |
from US $9.78 |
||
|
6
|
6
90460-85277-00 Clamp, Hose |
90460-85277-00 |
from US $8.50 |
||
|
7
|
7
3GB-2219X-00-00 Cover |
3GB-2219X-00-00 |
US $119.63 |
||
|
8
|
8
95811-08014-00 Bolt, Flange(2Hr) |
95811-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
|
9
|
9
90185-10115-00 Nut, Self-Locking |
90185-10115-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
