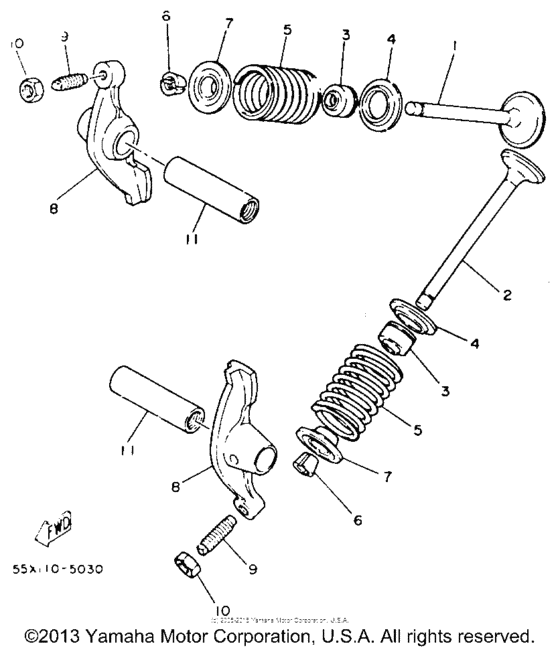

Valve Diagram Yamaha BADGER
- Model code
- YFM80E
- Engine Capacity
- 79
- Year
- 1993
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22K-12111-02-00
Valve, Intake
|
22K-12111-02-00 |
— | ||
| replacement | |||||
|
1
|
1
22K-12111-03-00 Valve, Intake |
22K-12111-03-00 |
from US $35.37 |
||
|
2
|
2
22K-12121-01-00
Valve, Exhaust
|
22K-12121-01-00 |
— | ||
| replacement | |||||
|
2
|
2
22K-12121-02-00 Valve, Exhaust |
22K-12121-02-00 |
from US $35.37 |
||
|
3
|
3
2HX-12119-00-00 Seal, Valve Stem |
2HX-12119-00-00 |
from US $4.64 |
||
|
4
|
4
22F-12116-00-00 Seat, Valve Spring |
22F-12116-00-00 |
from US $2 |
||
|
5
|
5
22F-12114-00-00 Spring, Valve Outer |
22F-12114-00-00 |
from US $7.79 |
||
|
6
|
6
22F-12118-01-00 Lock, Valve Spring Retainer |
22F-12118-01-00 |
from US $1.98 |
||
|
7
|
7
22F-12117-02-00 Retainer, Valve Spring |
22F-12117-02-00 |
from US $5.67 |
||
|
8
|
8
50M-12151-00-00 Arm, Valve Rocker |
50M-12151-00-00 |
from US $31.42 |
||
|
9
|
9
22F-12159-00-00 Screw, Valve Adjusting |
22F-12159-00-00 |
from US $4.39 |
||
|
10
|
10
90170-05302-00 Nut |
90170-05302-00 |
from US $1.34 |
||
|
11
|
11
22F-12156-00-00 Shaft, Rocker 2 |
22F-12156-00-00 |
from US $4.64 |
||
