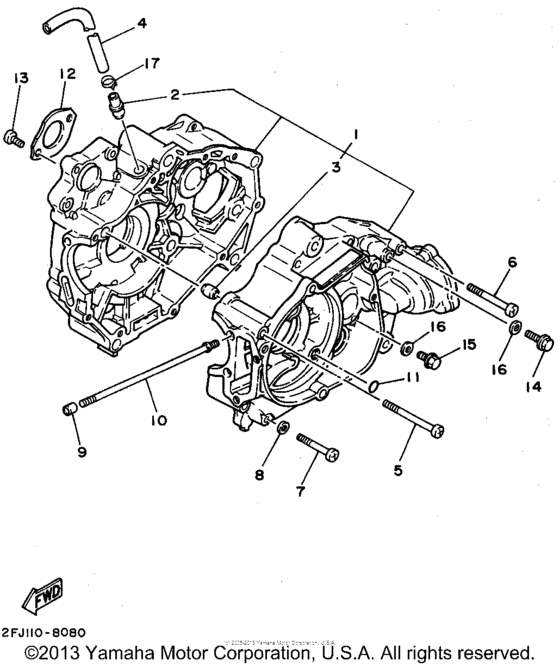

Crankcase Diagram Yamaha BADGER
- Model code
- YFM80G
- Engine Capacity
- 79
- Year
- 1995
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2FJ-15100-01-00 Crankcase Assy |
2FJ-15100-01-00 |
from US $437.66 |
||
|
2
|
2
59V-11167-00-00 Pipe, Breather 2 |
59V-11167-00-00 |
from US $5.10 |
||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
4
|
4
90445-121F6-00 Hose (L700) |
90445-121F6-00 |
from US $10.91 |
||
|
5
|
5
98507-06075-00 Screw, Pan Head |
98507-06075-00 |
from US $1.56 |
||
|
6
|
6
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.34 |
||
|
7
|
7
98507-06045-00 Screw, Pan Head |
98507-06045-00 |
from US $1.34 |
||
|
8
|
8
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
9
|
9
995-10080-12-00
Pin, Dowel
|
995-10080-12-00 |
— | ||
| replacement | |||||
|
9
|
9
91808-12024-00 Pin, Dowel |
91808-12024-00 |
from US $1.84 |
||
|
10
|
10
90116-06399-00 Bolt, Stud |
90116-06399-00 |
from US $2.12 |
||
| replacement | |||||
|
10
|
10
90116-06042-00 Bolt, Stud |
90116-06042-00 |
from US $3.12 |
||
|
11
|
11
93210-07540-00 O-Ring |
93210-07540-00 |
from US $1.56 |
||
|
12
|
12
22F-15383-01-00 Plate, Bearing Cover |
22F-15383-01-00 |
from US $2.05 |
||
|
13
|
13
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
14
|
14
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
| replacement | |||||
|
14
|
14
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
15
|
15
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
16
|
16
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.28 |
||
|
17
|
17
904-67130-64-00 Clip |
904-67130-64-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
90467-13133-00 Clip(3Yx) |
90467-13133-00 |
from US $1.42 |
||
