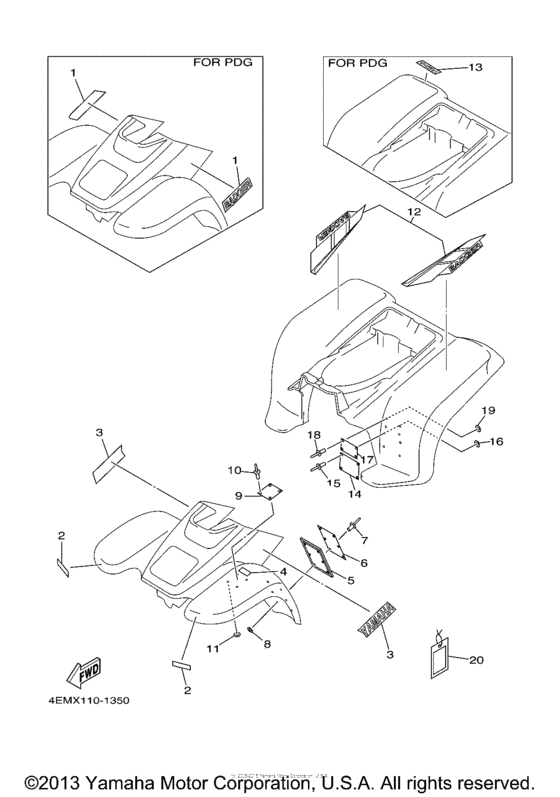

Emblem label (1) Diagram Yamaha BADGER
- Model code
- YFM80HN
- Engine Capacity
- 79
- Year
- 2001
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4EM-21565-00-00
Emblem, 2
FOR HN PDG U49 |
4EM-21565-00-00 |
— | ||
|
2
|
2
992-41001-00-00 Emblem, YamahaFOR N AND NC DPBSE |
992-41001-00-00 |
from US $5.85 |
||
|
3
|
3
99241-00180-00 Emblem, YamahaFOR N AND NC DPBSE |
99241-00180-00 |
from US $17.80 |
||
|
4
|
4
4EM-21578-A0-00 Emblem |
4EM-21578-A0-00 |
US $3.46 |
||
|
5
|
5
4EM-21581-10-00 Stay, Plate Fitting 1FOR HN PDG U49 |
4EM-21581-10-00 |
US $52.06 |
||
| replacement | |||||
|
5
|
5
5FE-21581-10-00 Stay, Plate Fitting 1FOR HN PDG U49 |
5FE-21581-10-00 |
US $52.06 |
||
|
5
|
5
4EM-21581-20-00 Stay, Plate Fitting 1FOR N AND NC DPBSE |
4EM-21581-20-00 |
from US $21.25 |
||
|
6
|
6
5FE-21568-01-00 Label, Warning |
5FE-21568-01-00 |
from US $43.52 |
||
|
7
|
7
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
8
|
8
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
9
|
9
4EM-21697-31-00 Label, Caution 2 |
4EM-21697-31-00 |
from US $23.83 |
||
|
10
|
10
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
10
|
10
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
11
|
11
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
12
|
12
4EM-2165B-01-00
Graphic Set, Rear Fender
|
4EM-2165B-01-00 |
— | ||
|
13
|
13
99247-00120-00 Emblem, YamahaFOR HN PDG U49 |
99247-00120-00 |
from US $7.79 |
||
|
14
|
14
4EM-21696-11-00 Label, Caution |
4EM-21696-11-00 |
from US $28.05 |
||
|
15
|
15
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
15
|
15
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
16
|
16
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
17
|
17
5FE-2151H-01-00 Label 5 |
5FE-2151H-01-00 |
from US $23.80 |
||
|
18
|
18
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
18
|
18
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
19
|
19
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
20
|
20
2FJ-2819R-00-00
Tag, Warning
|
2FJ-2819R-00-00 |
— | ||
