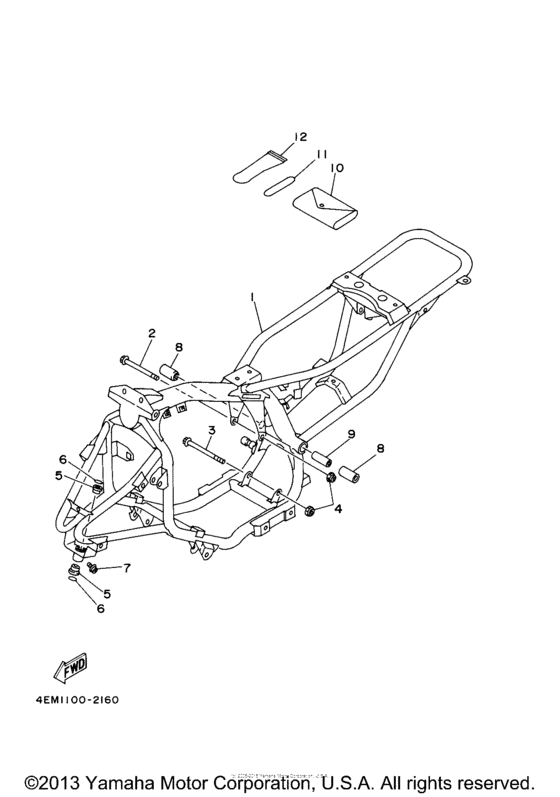

Frame Diagram Yamaha BADGER
- Model code
- YFM80HN
- Engine Capacity
- 79
- Year
- 2001
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4EM-21110-00-33
Frame Comp
|
4EM-21110-00-33 |
— | ||
| replacement | |||||
|
1
|
1
4EM-21110-10-33
Frame Comp
|
4EM-21110-10-33 |
— | ||
|
2
|
2
95817-08115-00 Bolt, Flange |
95817-08115-00 |
from US $6.38 |
||
|
3
|
3
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
4
|
4
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
5
|
5
90381-15040-00 Bush, Solid |
90381-15040-00 |
from US $12.75 |
||
|
6
|
6
93210-15414-00 O-Ring |
93210-15414-00 |
from US $1.35 |
||
| replacement | |||||
|
6
|
6
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.35 |
||
|
7
|
7
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
7
|
7
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
8
|
8
3GB-22123-00-00 Bush 1 |
3GB-22123-00-00 |
from US $16.72 |
||
|
9
|
9
3GB-22155-00-00 Pipe |
3GB-22155-00-00 |
from US $13.46 |
||
|
10
|
10
3GB-28100-00-00 Tool Kit |
3GB-28100-00-00 |
from US $16.72 |
||
|
11
|
11
93210-40407-00 O-Ring |
93210-40407-00 |
from US $1.98 |
||
|
12
|
12
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
