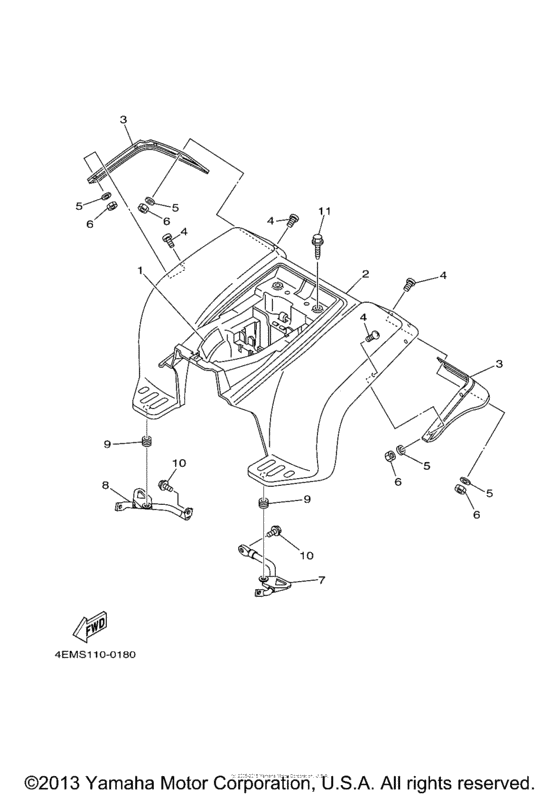

Rear fender Diagram Yamaha BADGER
- Model code
- YFM80HN
- Engine Capacity
- 79
- Year
- 2001
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4EM-2179T-10-00
Plate, Epa 3 (California)
CALIFORNIA FOR CALIFORNIA CAL |
4EM-2179T-10-00 |
— | ||
|
2
|
2
4EM-W2161-F1-00 Rear Fender CompUR HN PDG U49 |
4EM-W2161-F1-00 |
US $308 |
||
|
2
|
2
4EM-W2161-E1-00 Rear Fender CompUR N AND NC DPBSE |
4EM-W2161-E1-00 |
US $311.99 |
||
|
3
|
3
2HX-21621-00-00
Flap
|
2HX-21621-00-00 |
— | ||
|
4
|
4
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
5
|
5
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
6
|
6
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
7
|
7
3GB-21613-00-00 Stay, Fender 1 |
3GB-21613-00-00 |
from US $90.49 |
||
|
8
|
8
3GB-21614-00-00 Stay, Fender 2 |
3GB-21614-00-00 |
US $108.97 |
||
|
9
|
9
90480-16233-00 Grommet (2N3) |
90480-16233-00 |
from US $1.98 |
||
|
10
|
10
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
11
|
11
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
11
|
11
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
11
|
11
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
