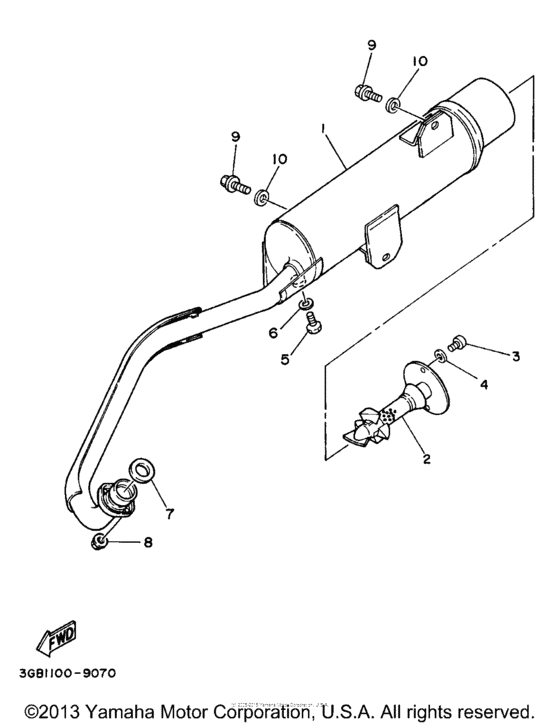

Exhaust Diagram Yamaha BADGER
- Model code
- YFM80
- Engine Capacity
- 79
- Year
- 1999
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GB-14711-00-00
Muffler 1
|
3GB-14711-00-00 |
— | ||
|
2
|
2
55X-14752-00-00 Pipe, Outlet |
55X-14752-00-00 |
from US $41.72 |
||
|
3
|
3
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
5
|
5
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
6
|
6
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
7
|
7
3DM-14613-00-00 Gasket, Exhaust Pipe |
3DM-14613-00-00 |
from US $5.67 |
||
|
8
|
8
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
9
|
9
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
10
|
10
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.66 |
||
| replacement | |||||
|
10
|
10
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
