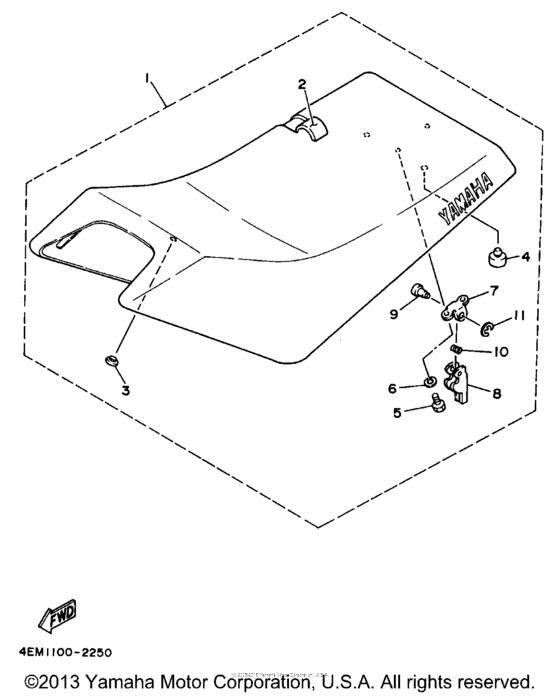

Seat Diagram Yamaha BADGER
- Model code
- YFM80
- Engine Capacity
- 79
- Year
- 1999
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4EM-24710-40-00
Single Seat Assembly
|
4EM-24710-40-00 |
— | ||
|
2
|
2
4EM-24731-40-00 Cover, Seat |
4EM-24731-40-00 |
US $203.40 |
||
|
3
|
3
3L7-24724-00-00 Damper, Seat |
3L7-24724-00-00 |
from US $8.36 |
||
|
4
|
4
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
5
|
5
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
5
|
5
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
6
|
6
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
4K0-24775-00-00 Bracket, Seat Lever |
4K0-24775-00-00 |
from US $7.51 |
||
|
8
|
8
29U-24776-00-00 Lever, Seat |
29U-24776-00-00 |
from US $7.51 |
||
|
9
|
9
4K0-24774-01-00 Pin |
4K0-24774-01-00 |
from US $7.51 |
||
|
10
|
10
90508-20454-00 Spring, Torsion |
90508-20454-00 |
from US $2.83 |
||
|
11
|
11
93430-04002-00 Circlip |
93430-04002-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
