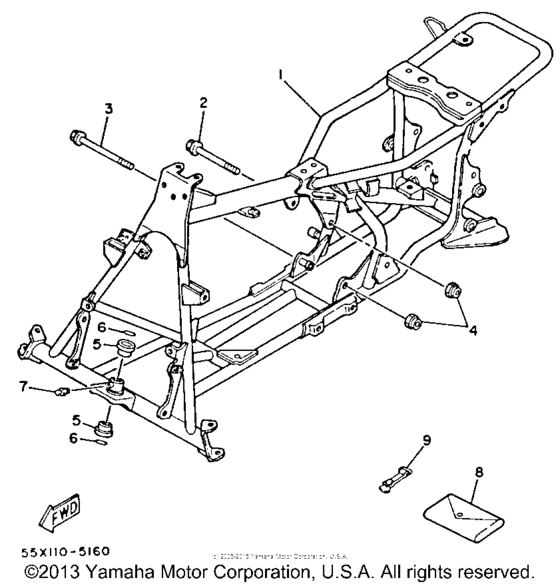

Frame Diagram Yamaha BADGER
- Model code
- YFM80N
- Engine Capacity
- 79
- Year
- 1985
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55X-21110-11-33
Frame Comp (55X-21110-01-33)
55X-21110-01-33 YAMAHA BLK |
55X-21110-11-33 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
55X-21110-01-33 YAMAHA BLK |
999-99999-99-00 |
— | ||
|
2
|
2
95821-08115-00 Bolt, Flange |
95821-08115-00 |
from US $4.52 |
||
| replacement | |||||
|
2
|
2
95817-08115-00 Bolt, Flange |
95817-08115-00 |
from US $5.39 |
||
|
3
|
3
95811-08135-00 Bolt, FlangeBolt,hexagon |
95811-08135-00 |
US $4.81 |
||
| replacement | |||||
|
3
|
3
95817-08135-00 Bolt, Flange |
95817-08135-00 |
US $4.73 |
||
|
4
|
4
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.09 |
||
| replacement | |||||
|
4
|
4
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.09 |
||
|
5
|
5
90381-15040-00 Bush, Solid |
90381-15040-00 |
from US $11.97 |
||
|
6
|
6
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.20 |
||
|
7
|
7
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.76 |
||
|
8
|
8
22F-W2810-00-00 Tool Kit (55X-28100-00)55X-28100-00 |
22F-W2810-00-00 |
US $54.63 |
||
|
9
|
9
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $3.19 |
||
