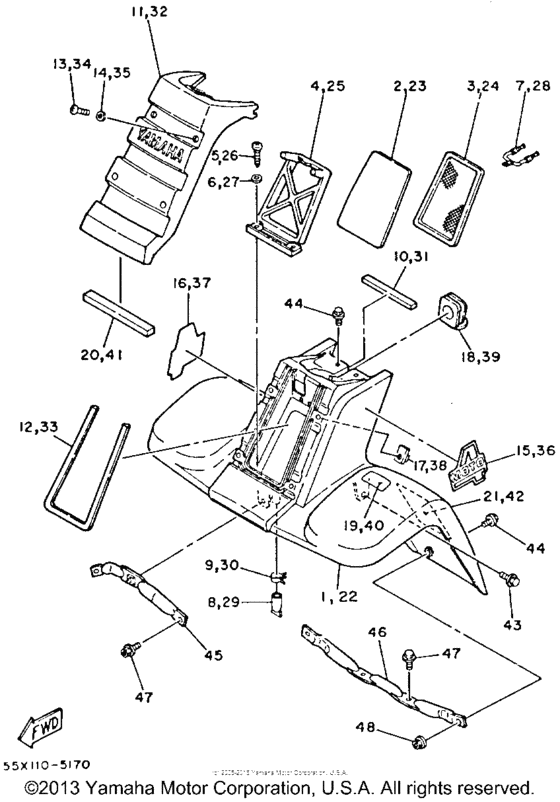

Front fender Diagram Yamaha BADGER
- Model code
- YFM80N
- Engine Capacity
- 79
- Year
- 1985
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55X-21511-09-00
Fender, Front (55X-21511-01-00)
55X-21511-01-00 UR FOR BLUE |
55X-21511-09-00 |
— | ||
|
2
|
2
55X-14451-00-00 Element, Air Cleaner |
55X-14451-00-00 |
from US $4.68 |
||
|
3
|
3
55X-14472-01-00 Plate, Element |
55X-14472-01-00 |
from US $26.35 |
||
|
4
|
4
55X-14458-00-00 Guide |
55X-14458-00-00 |
from US $7.37 |
||
|
5
|
5
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
6
|
6
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
7
|
7
55X-14436-00-00 Hook |
55X-14436-00-00 |
US $4.11 |
||
|
8
|
8
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $2.66 |
||
|
9
|
9
904-67220-80-00 Clip |
904-67220-80-00 |
from US $1.56 |
||
|
10
|
10
55X-21576-00-00
Seal 2
|
55X-21576-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
55X-21551-00-00
Over, Fender
|
55X-21551-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
55X-21575-01-00
Seal 1
|
55X-21575-01-00 |
— | ||
|
13
|
13
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
14
|
14
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
15
|
15
55X-21571-00-00
Graphic, Front Fn 1
FN 1 FOR BLUE |
55X-21571-00-00 |
— | ||
|
16
|
16
55X-21572-00-00
Graphic Frt Fndr 2
OR BLUE |
55X-21572-00-00 |
— | ||
|
17
|
17
55X-21535-00-00 Nut 1 |
55X-21535-00-00 |
from US $3.97 |
||
|
18
|
18
55X-14437-00-00
Duct
|
55X-14437-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
55X-26139-00-00
Label, Choke
|
55X-26139-00-00 |
— | ||
|
20
|
20
1X2-28372-00-00
Damper (55X-21541-00)
55X-21541-00 |
1X2-28372-00-00 |
— | ||
|
21
|
21
55X-21659-00-00
Label, Safety
|
55X-21659-00-00 |
— | ||
|
22
|
22
2FJ-21511-10-00
Fender, Front
UR FOR RED |
2FJ-21511-10-00 |
— | ||
|
23
|
23
55X-14451-00-00 Element, Air Cleaner |
55X-14451-00-00 |
from US $4.68 |
||
|
24
|
24
55X-14472-01-00 Plate, Element |
55X-14472-01-00 |
from US $26.35 |
||
|
25
|
25
55X-14458-00-00 Guide |
55X-14458-00-00 |
from US $7.37 |
||
|
26
|
26
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
27
|
27
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
28
|
28
55X-14436-00-00 Hook |
55X-14436-00-00 |
US $4.11 |
||
|
29
|
29
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $2.66 |
||
|
30
|
30
904-67220-80-00 Clip |
904-67220-80-00 |
from US $1.56 |
||
|
31
|
31
55X-21576-00-00
Seal 2
|
55X-21576-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
55X-21551-00-00
Over, Fender
|
55X-21551-00-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
55X-21575-01-00
Seal 1
|
55X-21575-01-00 |
— | ||
|
34
|
34
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
34
|
34
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
35
|
35
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
35
|
35
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
36
|
36
55X-21571-10-00
Graphic, Frt Fndr 1
FOR RED |
55X-21571-10-00 |
— | ||
|
37
|
37
55X-21572-10-00
Graphic Frt Fndr 2
FOR RED |
55X-21572-10-00 |
— | ||
|
38
|
38
55X-21535-00-00 Nut 1 |
55X-21535-00-00 |
from US $3.97 |
||
|
39
|
39
55X-14437-00-00
Duct
|
55X-14437-00-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
40
|
40
55X-26139-00-00
Label, Choke
|
55X-26139-00-00 |
— | ||
|
41
|
41
1X2-28372-00-00
Damper (55X-21541-00)
55X-21541-00 |
1X2-28372-00-00 |
— | ||
|
42
|
42
55X-21659-00-00
Label, Safety
|
55X-21659-00-00 |
— | ||
|
43
|
43
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
43
|
43
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
43
|
43
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
44
|
44
901-59050-65-00
Screw, With Washer
|
901-59050-65-00 |
— | ||
| replacements | |||||
|
44
|
44
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
44
|
44
90159-05073-00 Screw, With Washer |
90159-05073-00 |
from US $2.69 |
||
|
45
|
45
55X-21514-00-00
Stay, Fender 2
|
55X-21514-00-00 |
— | ||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
55X-21513-00-00
Stay, Fender 1
|
55X-21513-00-00 |
— | ||
|
47
|
47
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
47
|
47
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
47
|
47
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
48
|
48
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
48
|
48
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
