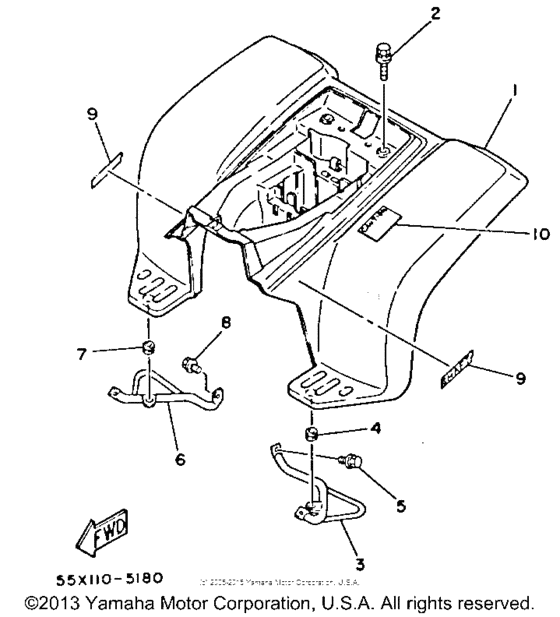

Rear fender Diagram Yamaha BADGER
- Model code
- YFM80N
- Engine Capacity
- 79
- Year
- 1985
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2FJ-21611-00-00
Fender, Rear (55X-21611-01)
55X-21611-01 UR FOR BLUE |
2FJ-21611-00-00 |
— | ||
|
1
|
1
2FJ-21611-10-00
Fender, Rear (55X-21611-19-00)
55X-21611-19-00 UR FOR RED |
2FJ-21611-10-00 |
— | ||
|
2
|
2
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
2
|
2
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
2
|
2
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
3
|
3
55X-21613-00-00 Stay, Fender 1 |
55X-21613-00-00 |
US $57.67 |
||
|
4
|
4
90480-16233-00 Grommet (2N3) |
90480-16233-00 |
from US $1.98 |
||
|
5
|
5
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
6
|
6
55X-21614-00-00
Stay, Fender 2
|
55X-21614-00-00 |
— | ||
|
7
|
7
90480-16233-00 Grommet (2N3) |
90480-16233-00 |
from US $1.98 |
||
|
8
|
8
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
9
|
9
55X-2163G-00-00
Emblem 1
|
55X-2163G-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
1YW-2178A-00-00
Label
|
1YW-2178A-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
