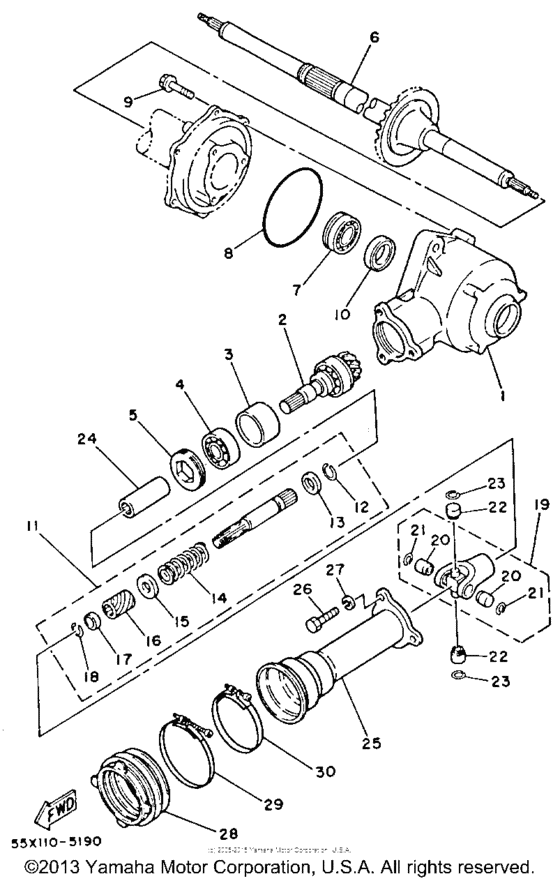

Drive shaft Diagram Yamaha BADGER
- Model code
- YFM80S
- Engine Capacity
- 79
- Year
- 1986
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55X-46151-00-00
Housing, Drive Shaft
|
55X-46151-00-00 |
— | ||
|
2
|
2
2HX-46120-00-00
Drive Pinion Comp
|
2HX-46120-00-00 |
— | ||
|
3
|
3
90560-40221-00
Spacer
|
90560-40221-00 |
— | ||
|
4
|
4
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
4
|
4
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
5
|
5
90179-50481-00
Nut
|
90179-50481-00 |
— | ||
|
6
|
6
55X-46110-03-00
Ring Gear Comp. (55X-46110-02)
|
55X-46110-03-00 |
— | ||
|
7
|
7
93306-00511-00 Bearing |
93306-00511-00 |
from US $19.84 |
||
|
8
|
8
93211-05393-00 O-Ring |
93211-05393-00 |
from US $6.50 |
||
| replacement | |||||
|
8
|
8
93211-066A9-00 O-Ring |
93211-066A9-00 |
from US $6.66 |
||
|
9
|
9
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
10
|
10
93102-25311-00 Oil Seal (Fpj 25-44-8 Ts)25-44-8 TS |
93102-25311-00 |
from US $7.23 |
||
|
11
|
11
55X-46171-00-00
Shaft Drive Assembly
|
55X-46171-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
93440-17138-00 Circlip |
93440-17138-00 |
from US $1.70 |
||
|
13
|
13
15L-18473-00-00 Retainer, Spring |
15L-18473-00-00 |
from US $5.38 |
||
|
14
|
14
90501-603A7-00
Spring, Compression
|
90501-603A7-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90201-146F9-00 Washer, Plate |
90201-146F9-00 |
from US $1.84 |
||
|
16
|
16
22F-16341-01-00
Screw Push
|
22F-16341-01-00 |
— | ||
|
17
|
17
22F-11485-00-00
Spacer
|
22F-11485-00-00 |
— | ||
|
18
|
18
93440-14124-00 Circlip, Outer |
93440-14124-00 |
US $3.20 |
||
|
19
|
19
22F-46180-01-00 Cross Joint |
22F-46180-01-00 |
US $323.14 |
||
|
20
|
20
93311-20952-00 Bearing |
93311-20952-00 |
from US $10.91 |
||
|
21
|
21
99009-17500-00 Circlip |
99009-17500-00 |
from US $1.56 |
||
|
22
|
22
93311-20952-00 Bearing |
93311-20952-00 |
from US $10.91 |
||
|
23
|
23
99009-17500-00 Circlip |
99009-17500-00 |
from US $1.56 |
||
|
24
|
24
22F-46123-01-00 Coupling, Gear |
22F-46123-01-00 |
from US $20.97 |
||
|
25
|
25
55X-17551-00-00
Housing, Bearing
|
55X-17551-00-00 |
— | ||
|
26
|
26
90101-08461-00 Bolt |
90101-08461-00 |
from US $1.70 |
||
|
27
|
27
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
28
|
28
55X-22189-00-00 Boot, Rubber |
55X-22189-00-00 |
from US $13.76 |
||
|
29
|
29
90460-85277-00 Clamp, Hose |
90460-85277-00 |
from US $8.50 |
||
|
30
|
30
90460-75020-00 Hose Clamp Assy |
90460-75020-00 |
from US $9.78 |
||
| replacement | |||||
|
30
|
30
904-50750-02-00 Hose Clamp Assy |
904-50750-02-00 |
from US $9.78 |
||
