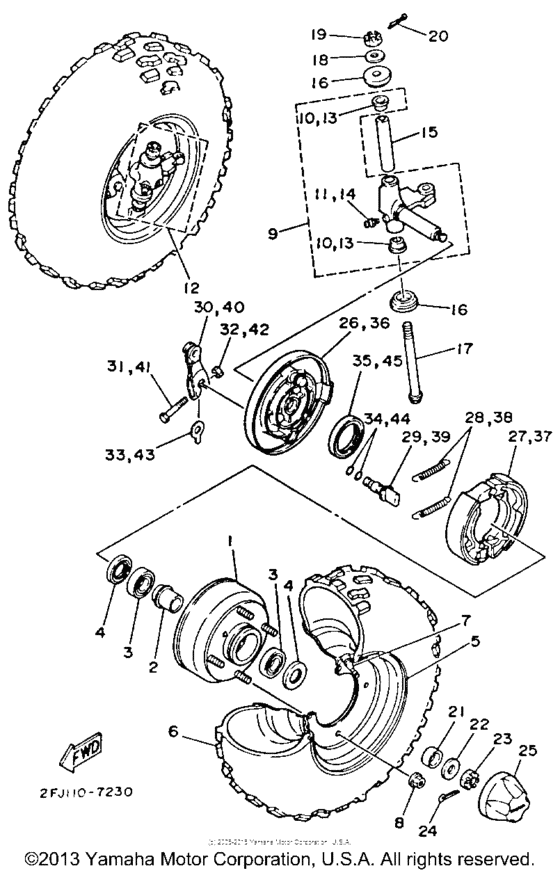

Front wheel Diagram Yamaha BADGER
- Model code
- YFM80T
- Engine Capacity
- 79
- Year
- 1987
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2FJ-25111-00-00 Hub, Front |
2FJ-25111-00-00 |
US $98.25 |
||
|
2
|
2
2FJ-25117-00-00 Spacer, Bearing |
2FJ-25117-00-00 |
from US $7.28 |
||
|
3
|
3
93306-00302-00 Brg,r-B 6003 35Mm 39G Ky |
93306-00302-00 |
from US $22.28 |
||
| replacement | |||||
|
3
|
3
933-06003-15-00 Bearing(2Jn) |
933-06003-15-00 |
from US $24.09 |
||
|
4
|
4
93102-23275-00 Oil Seal |
93102-23275-00 |
from US $7.08 |
||
|
5
|
5
2FJ-25180-00-35 Wheel Comp |
2FJ-25180-00-35 |
from US $83.50 |
||
|
6
|
6
94170-071K2-00 Dun 17X7-7At Kt586 (94107-075G517X7-7AT KT586 94107-075G5 DUNLOP |
94170-071K2-00 |
US $160.27 |
||
| replacement | |||||
|
6
|
6
2D3-2510K-09-00 Tire17X7-7AT KT586 94107-075G5 DUNLOP |
2D3-2510K-09-00 |
from US $114.67 |
||
|
7
|
7
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
8
|
8
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
8
|
8
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
8
|
8
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
9
|
9
2FJ-23501-00-00
Steering, Knuckle Ass''y (L)
|
2FJ-23501-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
90381-15032-00 Bush, Solid |
90381-15032-00 |
from US $24.51 |
||
|
11
|
11
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
12
|
12
2FJ-23502-00-00
Steering Knuckle R
|
2FJ-23502-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
90381-15032-00 Bush, Solid |
90381-15032-00 |
from US $24.51 |
||
|
14
|
14
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
15
|
15
55X-23448-00-00
Spacer
|
55X-23448-00-00 |
— | ||
|
16
|
16
59V-23517-00-00 Cover, Thrust 1 |
59V-23517-00-00 |
from US $16.31 |
||
|
17
|
17
90109-104A8-00 Bolt |
90109-104A8-00 |
from US $7.65 |
||
|
18
|
18
90201-08759-00 Washer, Plate |
90201-08759-00 |
from US $1.70 |
||
|
19
|
19
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.41 |
||
| replacement | |||||
|
19
|
19
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
20
|
20
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
21
|
21
90387-175R2-00 Collar |
90387-175R2-00 |
from US $4.68 |
||
|
22
|
22
90201-120E8-00 Washer, Plate |
90201-120E8-00 |
from US $4.68 |
||
|
23
|
23
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
24
|
24
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
|
25
|
25
52H-2512A-00-00 Cap, Wheel |
52H-2512A-00-00 |
from US $13.32 |
||
|
26
|
26
2FJ-25121-00-00 Plate, Brake Shoe |
2FJ-25121-00-00 |
from US $83.72 |
||
|
27
|
27
36R-W2536-00-00
Brakeshoe Set-2Pcs
|
36R-W2536-00-00 |
— | ||
| replacement | |||||
|
27
|
27
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
28
|
28
90506-18288-00 Spring, Tension |
90506-18288-00 |
from US $3.26 |
||
|
29
|
29
5G3-25351-02-00 Camshaft |
5G3-25351-02-00 |
from US $23.52 |
||
|
30
|
30
2FJ-25155-00-00 Lever, Camshaft 1 |
2FJ-25155-00-00 |
US $17.62 |
||
|
31
|
31
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
32
|
32
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
33
|
33
52H-2513A-00-00 Plate, Indicator |
52H-2513A-00-00 |
from US $2.69 |
||
|
34
|
34
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.34 |
||
|
35
|
35
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.37 |
||
|
36
|
36
2FJ-25169-00-00 Plate, Brake Shoe 2 |
2FJ-25169-00-00 |
from US $63.25 |
||
|
37
|
37
36R-W2536-00-00
Brakeshoe Set-2Pcs
|
36R-W2536-00-00 |
— | ||
| replacement | |||||
|
37
|
37
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
38
|
38
90506-18288-00 Spring, Tension |
90506-18288-00 |
from US $3.26 |
||
|
39
|
39
5G3-25351-02-00 Camshaft |
5G3-25351-02-00 |
from US $23.52 |
||
|
40
|
40
2FJ-25156-00-00 Lever, Camshaft 2 |
2FJ-25156-00-00 |
from US $8.98 |
||
|
41
|
41
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
42
|
42
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
43
|
43
52H-2513A-00-00 Plate, Indicator |
52H-2513A-00-00 |
from US $2.69 |
||
|
44
|
44
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.34 |
||
|
45
|
45
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.37 |
||
