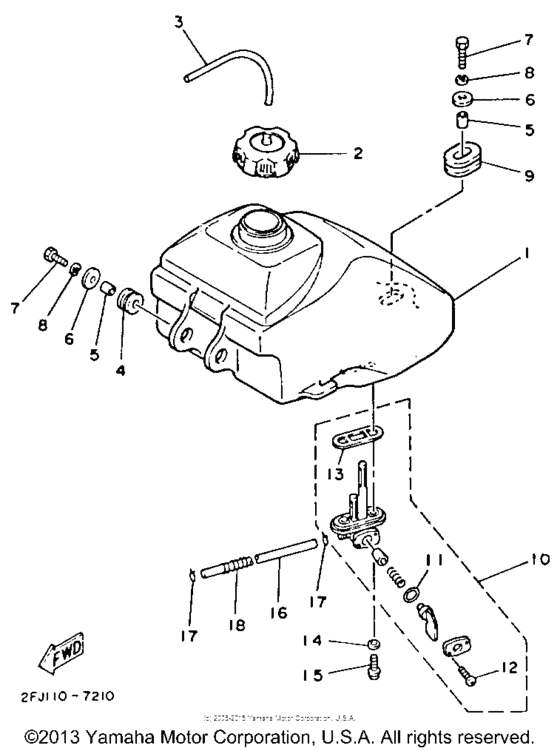

Fuel tank Diagram Yamaha BADGER
- Model code
- YFM80T
- Engine Capacity
- 79
- Year
- 1987
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2FJ-24110-00-00
Fuel Tank (55X-24110-00-00)
55X-24110-00-00 |
2FJ-24110-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
55X-24110-00-00 |
999-99999-99-00 |
— | ||
|
2
|
2
2FJ-24610-00-00
Cap Assy
|
2FJ-24610-00-00 |
— | ||
| replacements | |||||
|
2
|
2
2FJ-24610-10-00 Cap Assy |
2FJ-24610-10-00 |
from US $71.57 |
||
|
2
|
2
2FJ-24610-20-00 Cap Assy |
2FJ-24610-20-00 |
from US $71.57 |
||
|
3
|
3
90445-09111-00 Hose (L675) |
90445-09111-00 |
from US $19.84 |
||
| replacement | |||||
|
3
|
3
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
4
|
4
90480-18290-00 Grommet |
90480-18290-00 |
from US $1.70 |
||
|
5
|
5
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
6
|
6
90201-06072-00 Washer, Plate |
90201-06072-00 |
from US $1.28 |
||
|
7
|
7
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
7
|
7
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
90480-01400-00 Grommet |
90480-01400-00 |
from US $4.11 |
||
|
10
|
10
55X-24500-01-00 Fuel Cock Assy 1 |
55X-24500-01-00 |
from US $29.89 |
||
| replacement | |||||
|
10
|
10
55X-24500-02-00 Fuel Cock Assy 1 |
55X-24500-02-00 |
from US $29.89 |
||
|
11
|
11
4X8-24534-00-00 Seal, Cock |
4X8-24534-00-00 |
from US $7.37 |
||
|
12
|
12
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
13
|
13
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
14
|
14
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
15
|
15
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
16
|
16
904-45100-E9-00
Hose (L110)
|
904-45100-E9-00 |
— | ||
| replacement | |||||
|
16
|
16
904-45107-52-00 Hose (L170) |
904-45107-52-00 |
from US $3.68 |
||
|
17
|
17
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
17
|
17
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
18
|
18
90501-06583-00 Spring, Compression |
90501-06583-00 |
from US $2.83 |
||
| replacement | |||||
|
18
|
18
90504-06030-00 Spring, Compression |
90504-06030-00 |
from US $2.83 |
||
