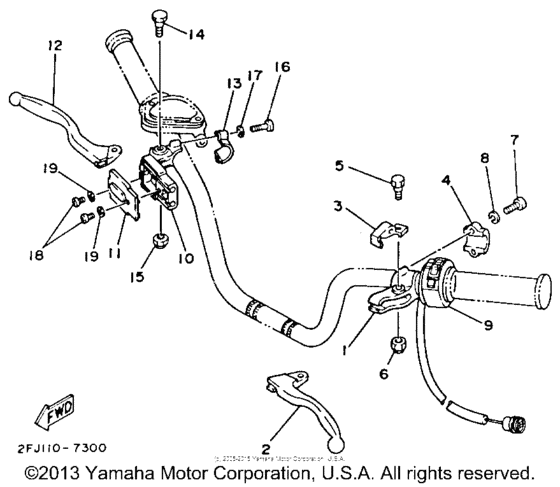

Handle switch & lever Diagram Yamaha BADGER
- Model code
- YFM80T
- Engine Capacity
- 79
- Year
- 1987
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38V-82911-00-00 Holder, Lever 1 |
38V-82911-00-00 |
from US $42.41 |
||
|
2
|
2
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
2
|
2
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
3
|
3
3X3-83965-00-00 Lever, Lock |
3X3-83965-00-00 |
from US $11.19 |
||
|
4
|
4
38V-82913-00-00 Holder, Lever Lower 1 |
38V-82913-00-00 |
from US $3.98 |
||
|
5
|
5
2H7-83945-00-00
Bolt
|
2H7-83945-00-00 |
— | ||
| replacements | |||||
|
5
|
5
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.26 |
||
|
5
|
5
90109-06798-00 Bolt |
90109-06798-00 |
from US $3.40 |
||
|
6
|
6
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
7
|
7
985-06050-18-00
Screw, Pan Head
|
985-06050-18-00 |
— | ||
| replacement | |||||
|
7
|
7
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
8
|
8
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
9
|
9
55X-83975-09-00 Switch, Handle 2 |
55X-83975-09-00 |
from US $126.95 |
||
| replacement | |||||
|
9
|
9
55X-83975-08-00 element |
55X-83975-08-00 |
US $178.81 |
||
|
10
|
10
2FJ-82921-00-00
Holder, Lever 2
|
2FJ-82921-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
2FJ-2631G-00-00
Plate
|
2FJ-2631G-00-00 |
— | ||
|
12
|
12
59V-83922-00-00 Lever 2 |
59V-83922-00-00 |
from US $23.09 |
||
|
13
|
13
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
14
|
14
90109-06798-00 Bolt |
90109-06798-00 |
from US $3.40 |
||
|
15
|
15
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
16
|
16
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
16
|
16
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
17
|
17
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
18
|
18
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
19
|
19
92902-03600-00 Washer |
92902-03600-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
92907-03600-00 Washer(3Sx) |
92907-03600-00 |
from US $1.07 |
||
