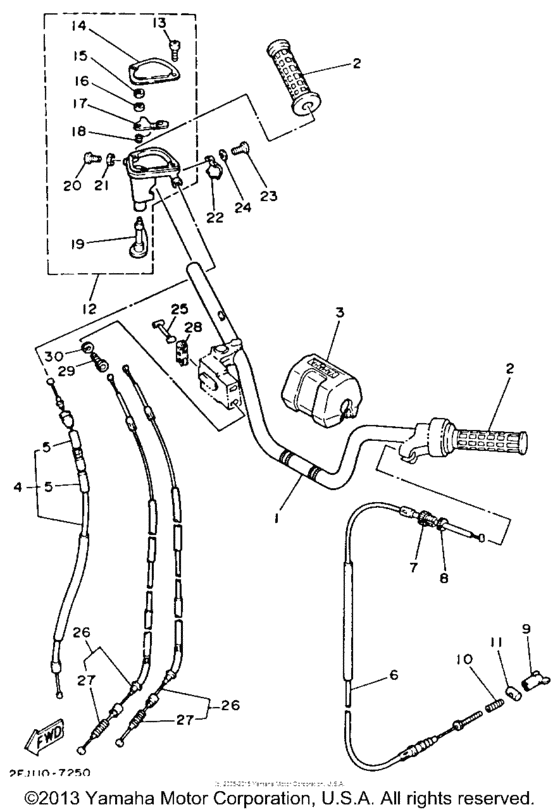

Handlebar - cable Diagram Yamaha BADGER
- Model code
- YFM80T
- Engine Capacity
- 79
- Year
- 1987
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GB-26111-00-00
Column, Steering
|
3GB-26111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
87A-23811-00-00
Column, Steering
|
87A-23811-00-00 |
— | ||
|
2
|
2
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
3
|
3
55X-26124-00-00 Protector, Handlebar |
55X-26124-00-00 |
US $59.58 |
||
|
4
|
4
55X-26311-00-00 Cable, Throttle 1 |
55X-26311-00-00 |
US $44.44 |
||
|
5
|
5
3X3-26329-00-00
Cap, Rubber
|
3X3-26329-00-00 |
— | ||
|
6
|
6
55X-26341-00-00
Cable, Brake
|
55X-26341-00-00 |
— | ||
|
7
|
7
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
7
|
7
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
8
|
8
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
8
|
8
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
9
|
9
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
10
|
10
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
11
|
11
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
12
|
12
2FJ-26250-00-00
Throttle Lever Assembly
|
2FJ-26250-00-00 |
— | ||
|
13
|
13
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
13
|
13
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
14
|
14
21V-2628F-00-00
Cap, Gear
|
21V-2628F-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
55X-2625H-01-00
Arm, Throttle
|
55X-2625H-01-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
90508-10597-00
Spring, Torsion
|
90508-10597-00 |
— | ||
|
19
|
19
55X-2625G-00-00
Lever, Throttle
|
55X-2625G-00-00 |
— | ||
|
20
|
20
901-57050-75-00
Screw, Pan Head 55X
55X |
901-57050-75-00 |
— | ||
|
21
|
21
953-16057-00-00 Nut(2Nl) |
953-16057-00-00 |
from US $2.83 |
||
| replacement | |||||
|
21
|
21
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
22
|
22
38V-82913-00-00 Holder, Lever Lower 1 |
38V-82913-00-00 |
from US $3.98 |
||
|
23
|
23
985-06050-18-00
Screw, Pan Head
|
985-06050-18-00 |
— | ||
| replacement | |||||
|
23
|
23
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
24
|
24
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
25
|
25
2FJ-26373-00-00
Cable, Brake 4
|
2FJ-26373-00-00 |
— | ||
|
26
|
26
2FJ-26361-00-00 Cable, Brake |
2FJ-26361-00-00 |
US $42.70 |
||
|
27
|
27
90501-08511-00 Spring, Compression |
90501-08511-00 |
from US $1.84 |
||
|
28
|
28
52H-26347-01-00 Joint, Cable |
52H-26347-01-00 |
from US $22.24 |
||
|
29
|
29
90123-08106-00 Bolt |
90123-08106-00 |
from US $7.23 |
||
|
30
|
30
90179-08537-00
Nut
|
90179-08537-00 |
— | ||
