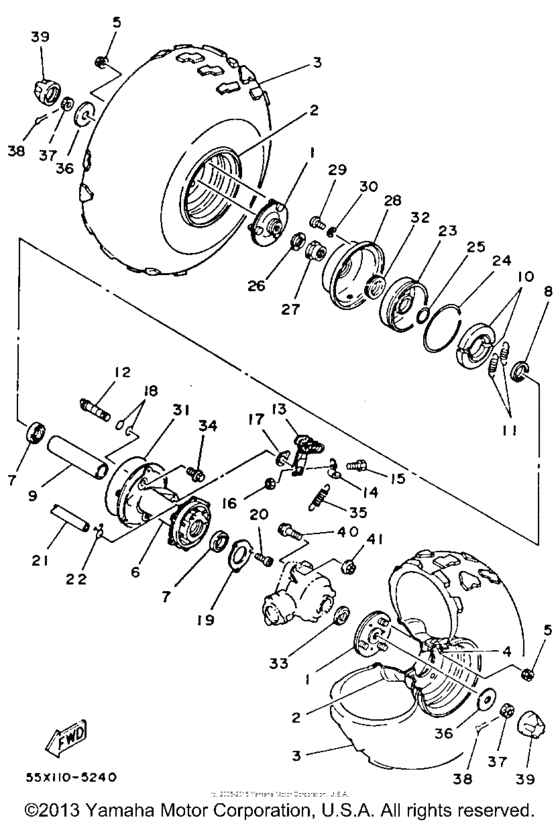

Rear wheel Diagram Yamaha BADGER
- Model code
- YFM80T
- Engine Capacity
- 79
- Year
- 1987
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55X-25383-00-00 Collar, Wheel |
55X-25383-00-00 |
from US $51.66 |
||
| replacement | |||||
|
1
|
1
55X-25383-10-00 Collar, Wheel |
55X-25383-10-00 |
from US $76.13 |
||
|
2
|
2
2FJ-25390-00-35 Rear Wheel Comp |
2FJ-25390-00-35 |
from US $101.98 |
||
|
3
|
3
94108-073Y8-00 Tire (At18X8-7**kt587T/l N)N DUNLOP |
94108-073Y8-00 |
US $168.30 |
||
| replacement | |||||
|
3
|
3
2D3-2510K-19-00 TIRE At18X8-7 Kt587 T/L N (Duro)N DUNLOP |
2D3-2510K-19-00 |
from US $114.67 |
||
|
4
|
4
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
5
|
5
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
6
|
6
55X-25311-00-00
Hub, Rear
|
55X-25311-00-00 |
— | ||
|
7
|
7
93306-07801-00 Bearing |
93306-07801-00 |
from US $19.84 |
||
|
8
|
8
93105-35025-00
Oil Seal
|
93105-35025-00 |
— | ||
|
9
|
9
90560-28268-00
Spacer
|
90560-28268-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
183-W2536-00-00
Brake Shoe Set-2Pcs
|
183-W2536-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
12
|
12
55X-25351-00-00 Camshaft |
55X-25351-00-00 |
from US $30.04 |
||
|
13
|
13
55X-25355-00-00 Lever, Camshaft |
55X-25355-00-00 |
from US $30.04 |
||
|
14
|
14
55X-2533H-00-00 Hook, Spring |
55X-2533H-00-00 |
from US $3.67 |
||
|
15
|
15
90101-06562-00 Bolt |
90101-06562-00 |
from US $1.67 |
||
| replacement | |||||
|
15
|
15
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
17
|
17
23F-2533A-00-00 Plate, Indicator |
23F-2533A-00-00 |
from US $2.55 |
||
|
18
|
18
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
18
|
18
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
19
|
19
55X-46114-00-00
Plate, Cover
|
55X-46114-00-00 |
— | ||
|
20
|
20
91311-06016-00 Bolt, Hexagon Socket Head |
91311-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
21
|
21
90445-09361-00
Hose (L540)
|
90445-09361-00 |
— | ||
|
22
|
22
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
23
|
23
55X-2531E-00-00
Drum, Brake
|
55X-2531E-00-00 |
— | ||
|
24
|
24
55X-25336-00-00
Ring 2
|
55X-25336-00-00 |
— | ||
|
25
|
25
93210-26662-00 O-Ring |
93210-26662-00 |
from US $2.83 |
||
|
26
|
26
901-79264-84-00
Nut Spec''l Shape
|
901-79264-84-00 |
— | ||
|
27
|
27
90179-26570-00
Nut (90179-26497)
90179-26497 |
90179-26570-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
90179-26497 |
999-99999-99-00 |
— | ||
|
28
|
28
55X-25715-00-00 Cover 1 |
55X-25715-00-00 |
from US $31.84 |
||
|
29
|
29
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
29
|
29
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
31
|
31
93211-63688-00 O-Ring |
93211-63688-00 |
from US $7.51 |
||
|
32
|
32
93102-35349-00 Oil Seal |
93102-35349-00 |
from US $10.48 |
||
| replacement | |||||
|
32
|
32
93102-35191-00 Oil Seal (705) |
93102-35191-00 |
from US $10.48 |
||
|
33
|
33
36R-25367-00-00 Cover, Hub Dust |
36R-25367-00-00 |
from US $5.10 |
||
|
34
|
34
95811-10025-00 Bolt, Flange (13W) |
95811-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
34
|
34
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
35
|
35
90507-15038-00 Spring, Tension |
90507-15038-00 |
from US $3.40 |
||
|
36
|
36
90201-125J7-00
Washer, Plate
|
90201-125J7-00 |
— | ||
|
37
|
37
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
38
|
38
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
38
|
38
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
|
39
|
39
52H-2512A-00-00 Cap, Wheel |
52H-2512A-00-00 |
from US $13.32 |
||
|
40
|
40
95811-10045-00 Bolt, Flange (3R4) |
95811-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
40
|
40
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
41
|
41
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
41
|
41
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
41
|
41
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
