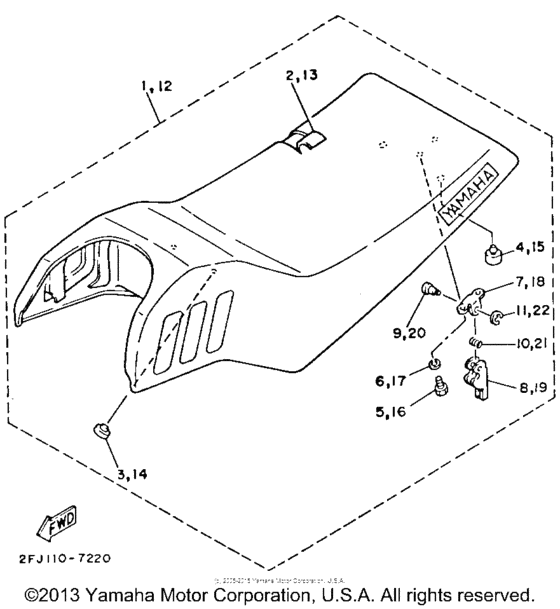

Seat Diagram Yamaha BADGER
- Model code
- YFM80T
- Engine Capacity
- 79
- Year
- 1987
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2FJ-24770-00-00
Semi-Double Seat
|
2FJ-24770-00-00 |
— | ||
| replacement | |||||
|
1
|
1
55X-24710-00-00
Seat Assembly (55X-W2473-10-00)
|
55X-24710-00-00 |
— | ||
|
2
|
2
2FJ-24731-00-00
Cover, Double Seat (55X-24731
55X-24731 |
2FJ-24731-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
55X-24731 |
999-99999-99-00 |
— | ||
|
3
|
3
3L7-24724-00-00 Damper, Seat |
3L7-24724-00-00 |
from US $8.36 |
||
|
4
|
4
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
5
|
5
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
4K0-24775-00-00 Bracket, Seat Lever |
4K0-24775-00-00 |
from US $7.51 |
||
|
8
|
8
29U-24776-00-00 Lever, Seat |
29U-24776-00-00 |
from US $7.51 |
||
|
9
|
9
4K0-24774-01-00 Pin |
4K0-24774-01-00 |
from US $7.51 |
||
|
10
|
10
90508-20454-00 Spring, Torsion |
90508-20454-00 |
from US $2.83 |
||
|
11
|
11
93430-04002-00 Circlip |
93430-04002-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
12
|
12
2FJ-24710-10-00
Semi-Double Seat Ass''y (2Fj-24
2FJ-24 UR BLACK |
2FJ-24710-10-00 |
— | ||
|
13
|
13
2FJ-24731-10-00
Cover, Double Seat (55X-24731
55X-24731 |
2FJ-24731-10-00 |
— | ||
|
14
|
14
3L7-24724-00-00 Damper, Seat |
3L7-24724-00-00 |
from US $8.36 |
||
|
15
|
15
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
16
|
16
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
4K0-24775-00-00 Bracket, Seat Lever |
4K0-24775-00-00 |
from US $7.51 |
||
|
19
|
19
29U-24776-00-00 Lever, Seat |
29U-24776-00-00 |
from US $7.51 |
||
|
20
|
20
4K0-24774-01-00 Pin |
4K0-24774-01-00 |
from US $7.51 |
||
|
21
|
21
90508-20454-00 Spring, Torsion |
90508-20454-00 |
from US $2.83 |
||
|
22
|
22
93430-04002-00 Circlip |
93430-04002-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
