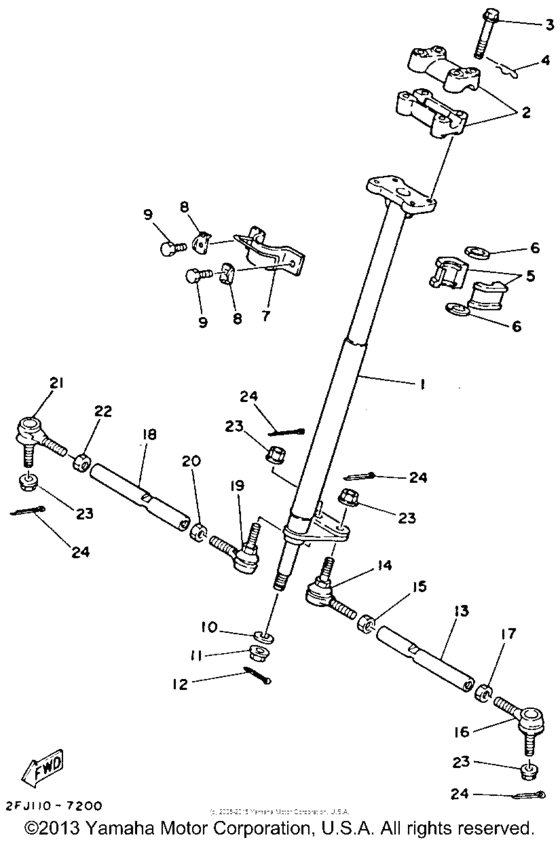

Steering Diagram Yamaha BADGER
- Model code
- YFM80T
- Engine Capacity
- 79
- Year
- 1987
- Sales region
- USA
- 2WD/4WD/AWD
- 2WD
- Model
- Badger
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55X-23813-00-00
Column, Steering 2
|
55X-23813-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
164-23441-00-98
Holder, Handle Under (8G5-23814
8G5-23814 |
164-23441-00-98 |
— | ||
| replacement | |||||
|
2
|
2
164-23441-01-98 Handle, Holder8G5-23814 |
164-23441-01-98 |
from US $47.25 |
||
|
3
|
3
901-05083-50-00
Bolt, Washer Based
|
901-05083-50-00 |
— | ||
|
4
|
4
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
5
|
5
52H-23812-00-00 Bearing, Steering |
52H-23812-00-00 |
US $17.42 |
||
|
6
|
6
93112-28007-00
Oil Seal
|
93112-28007-00 |
— | ||
|
7
|
7
55X-23868-00-00
Bracket, Strg Lower
|
55X-23868-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90215-08262-00 Washer, Lock 1 |
90215-08262-00 |
from US $1.98 |
||
| replacement | |||||
|
8
|
8
8AC-23894-01-00 Washer, Lock 1 |
8AC-23894-01-00 |
from US $1.98 |
||
|
9
|
9
97011-08016-00 Bolt(2Vy) |
97011-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
10
|
10
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.35 |
||
|
11
|
11
90185-10115-00 Nut, Self-Locking |
90185-10115-00 |
from US $1.84 |
||
| replacement | |||||
|
11
|
11
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
12
|
12
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
13
|
13
55X-23831-01-00
Rod Tie
|
55X-23831-01-00 |
— | ||
|
14
|
14
55X-23841-01-00 Joint, Universal 1 |
55X-23841-01-00 |
from US $53.74 |
||
|
15
|
15
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
15
|
15
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
16
|
16
52H-23845-01-00 Joint, Universal 2 |
52H-23845-01-00 |
from US $67.09 |
||
|
17
|
17
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
18
|
18
55X-23831-01-00
Rod Tie
|
55X-23831-01-00 |
— | ||
|
19
|
19
55X-23841-01-00 Joint, Universal 1 |
55X-23841-01-00 |
from US $53.74 |
||
|
20
|
20
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
20
|
20
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
21
|
21
52H-23845-01-00 Joint, Universal 2 |
52H-23845-01-00 |
from US $67.09 |
||
|
22
|
22
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
23
|
23
90185-10115-00 Nut, Self-Locking |
90185-10115-00 |
from US $1.84 |
||
| replacement | |||||
|
23
|
23
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
24
|
24
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
