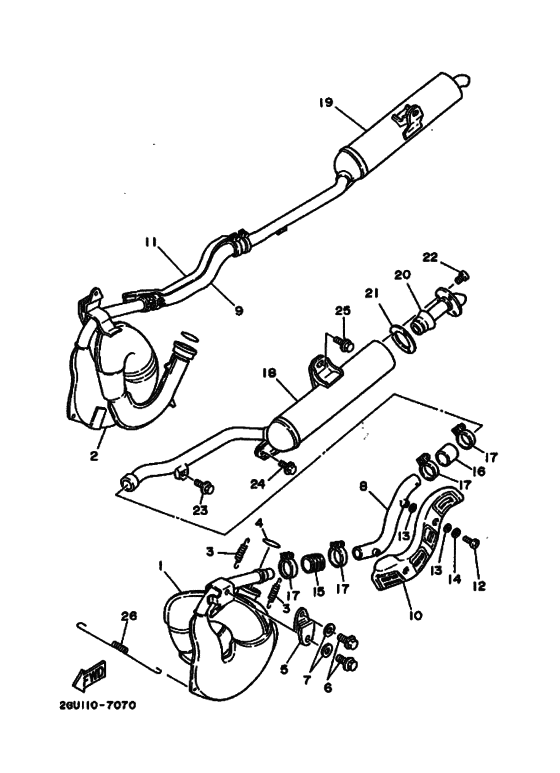

Exhaust Diagram Yamaha BANSHEE Banshee
- Model code
- 2GU0
- Engine Capacity
- 347
- Year
- 1988
- Sales region
- Europe (030)
- Colour
- White (WW; 0036)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-14610-00-00
Exhaust Pipe Assy 1
|
2GU-14610-00-00 |
— | ||
|
2
|
2
2GU-14620-00-00
Exhaust Pipe Assy 2
|
2GU-14620-00-00 |
— | ||
|
3
|
3
90507-20030-00 Spring, Tension |
90507-20030-00 |
from US $4.53 |
||
|
4
|
4
93210-45742-00 O-Ring |
93210-45742-00 |
from US $12.61 |
||
|
5
|
5
2GU-14771-00-00 Stay, Muffler 1 |
2GU-14771-00-00 |
from US $17 |
||
|
6
|
6
95816-08014-00 301 Bolt, Flange |
95816-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
7
|
7
90201-081H4-00 Washer, Plate |
90201-081H4-00 |
from US $1.70 |
||
| replacements | |||||
|
7
|
7
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
7
|
7
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
|
8
|
8
2GU-14635-00-00 Joint, Exhaust 3 |
2GU-14635-00-00 |
from US $38.55 |
||
|
9
|
9
2GU-14645-00-00 Joint, Exhaust 4 |
2GU-14645-00-00 |
from US $38.55 |
||
|
10
|
10
2GU-14718-00-00 Protector, Muffler 1 |
2GU-14718-00-00 |
from US $26.64 |
||
|
11
|
11
2GU-14728-00-00 Protector, Muffler 2 |
2GU-14728-00-00 |
from US $26.64 |
||
|
12
|
12
98906-06012-00 Screw, Bind |
98906-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98907-06012-00 Screw, Bind |
98907-06012-00 |
from US $1.42 |
||
|
13
|
13
30X-14766-00-00
Washer, Protector
|
30X-14766-00-00 |
— | ||
| replacement | |||||
|
13
|
13
5RB-14766-00-00 Washer, Protector |
5RB-14766-00-00 |
US $2.55 |
||
|
14
|
14
902-06060-60-00
Washer, Wave
|
902-06060-60-00 |
— | ||
| replacement | |||||
|
14
|
14
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.70 |
||
|
15
|
15
1W2-14714-00-00 Gasket, Muffler |
1W2-14714-00-00 |
from US $19.54 |
||
|
16
|
16
2GU-14615-00-00 Joint, Exhaust 1 |
2GU-14615-00-00 |
from US $55.40 |
||
|
17
|
17
90460-37026-00 Clamp, Hose |
90460-37026-00 |
from US $4.53 |
||
| replacement | |||||
|
17
|
17
90460-37130-00 Clamp, Hose |
90460-37130-00 |
from US $4.53 |
||
|
18
|
18
2GU-14753-00-00 Silencer, Exhaust |
2GU-14753-00-00 |
from US $236.65 |
||
| replacement | |||||
|
18
|
18
2GU-14753-01-00
Silencer, Exhaust
|
2GU-14753-01-00 |
— | ||
|
19
|
19
2GU-14765-00-00 Silencer |
2GU-14765-00-00 |
from US $236.65 |
||
| replacement | |||||
|
19
|
19
2GU-14765-01-00
Silencer
|
2GU-14765-01-00 |
— | ||
|
20
|
20
2GU-14752-00-00 Pipe, Outlet |
2GU-14752-00-00 |
US $35.37 |
||
|
21
|
21
2GU-14613-00-00 Gasket, Exhaust Pipe |
2GU-14613-00-00 |
from US $5.10 |
||
| replacement | |||||
|
21
|
21
2GU-14613-10-00 Gasket, Exhaust Pipe |
2GU-14613-10-00 |
from US $5.10 |
||
|
22
|
22
989-06060-10-00
Screw, Bind
|
989-06060-10-00 |
— | ||
| replacement | |||||
|
22
|
22
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
23
|
23
95816-08014-00 301 Bolt, Flange |
95816-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
24
|
24
95816-08014-00 301 Bolt, Flange |
95816-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
25
|
25
95816-08014-00 301 Bolt, Flange |
95816-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
26
|
26
90506-18398-00 Spring, Tension |
90506-18398-00 |
from US $7.08 |
||
