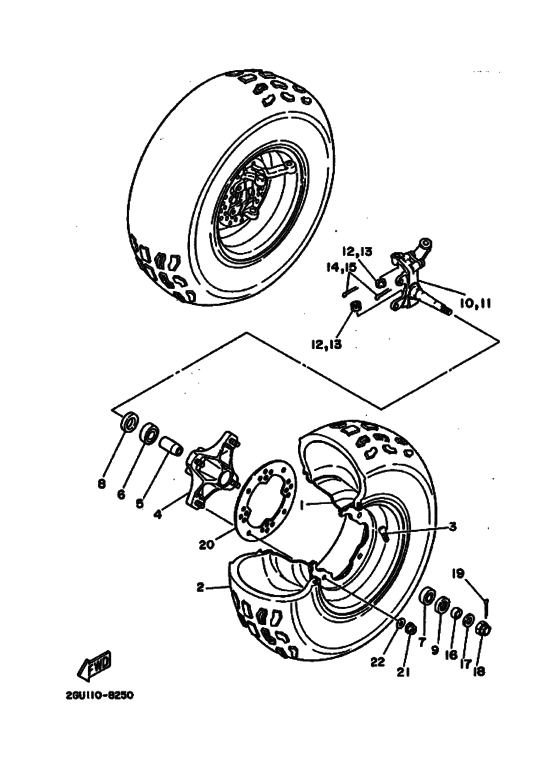

Front wheel Diagram Yamaha BANSHEE Banshee
- Model code
- 2GU0
- Engine Capacity
- 347
- Year
- 1988
- Sales region
- Europe (030)
- Colour
- White (WW; 0036)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2XK-25180-00-7H
Front Wheel Comp
ALMITE GOLD |
2XK-25180-00-7H |
— | ||
| replacements | |||||
|
1
|
1
2XK-25180-10-7H
Front Wheel Comp
ALMITE GOLD |
2XK-25180-10-7H |
— | ||
|
1
|
1
2XK-25180-01-7H
Wheel Comp
ALMITE GOLD |
2XK-25180-01-7H |
— | ||
|
2
|
2
941-70106-N2-00
Dun 21X7-10 Kt764
21x7-10; DUNLOP |
941-70106-N2-00 |
— | ||
| replacement | |||||
|
2
|
2
94107-100X5-00
Tire (At21X7-10-Kt764B T/l)
21x7-10; DUNLOP |
94107-100X5-00 |
— | ||
|
3
|
3
939-00000-22-00
Valve, Rim (Tr413)
TAIHEIYO |
939-00000-22-00 |
— | ||
| replacement | |||||
|
3
|
3
939-00000-30-00 Valve, Rim (Tr412)TAIHEIYO |
939-00000-30-00 |
from US $7.65 |
||
|
4
|
4
1UY-25111-01-00
Hub, Front
|
1UY-25111-01-00 |
— | ||
| replacement | |||||
|
4
|
4
1UY-25111-02-00
Hub, Front
|
1UY-25111-02-00 |
— | ||
|
5
|
5
1UY-25117-00-00 Spacer, Bearing |
1UY-25117-00-00 |
from US $15.44 |
||
|
6
|
6
93306-00435-00 Bearing |
93306-00435-00 |
from US $13.18 |
||
| replacement | |||||
|
6
|
6
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.48 |
||
|
7
|
7
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
7
|
7
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
8
|
8
93105-26026-00 Oil Seal |
93105-26026-00 |
from US $6.40 |
||
|
9
|
9
93102-22216-00 Oil Seal |
93102-22216-00 |
from US $7.36 |
||
|
10
|
10
1UY-23501-01-00
Steering Knuckle Assembly (Left
|
1UY-23501-01-00 |
— | ||
|
11
|
11
1UY-23502-01-00
Steering, Knuckle Assembly (Rig
|
1UY-23502-01-00 |
— | ||
|
12
|
12
90171-10046-00 Nut, Castle(1Uy) |
90171-10046-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
|
13
|
13
90171-10046-00 Nut, Castle(1Uy) |
90171-10046-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
|
14
|
14
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
14
|
14
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
15
|
15
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
15
|
15
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
16
|
16
90387-150R1-00 Collar |
90387-150R1-00 |
from US $2.69 |
||
|
17
|
17
90201-14586-00 Washer, Plate |
90201-14586-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
18
|
18
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
18
|
18
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
19
|
19
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
20
|
20
2GU-2514A-00-00
Ring Wheel
|
2GU-2514A-00-00 |
— | ||
|
21
|
21
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
21
|
21
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
21
|
21
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
22
|
22
92901-10200-00 Washer |
92901-10200-00 |
from US $0.90 |
||
| replacement | |||||
|
22
|
22
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
