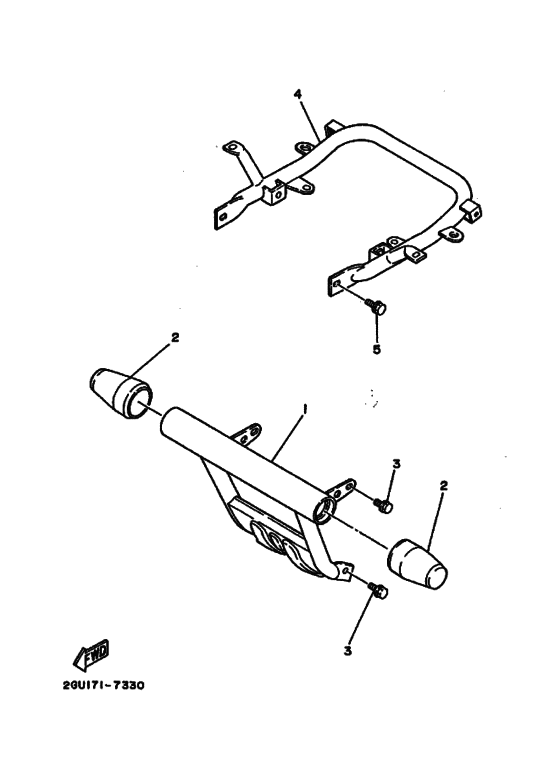

Guard Diagram Yamaha BANSHEE Banshee
- Model code
- 2GU0
- Engine Capacity
- 347
- Year
- 1988
- Sales region
- Europe (030)
- Colour
- White (WW; 0036)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-28411-10-UJ
Bumper, Front
RADICAL WHITE |
2GU-28411-10-UJ |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
RADICAL WHITE |
999-99999-99-00 |
— | ||
|
2
|
2
1UY-28415-00-00 Damper 1 |
1UY-28415-00-00 |
from US $8.76 |
||
|
3
|
3
95811-08014-00 Bolt, Flange(2Hr) |
95811-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
4
|
4
2GU-28421-10-00 Guard, Rear 1 |
2GU-28421-10-00 |
from US $107.42 |
||
| replacement | |||||
|
4
|
4
3GG-2845R-10-00
Bar, Carry Rear
|
3GG-2845R-10-00 |
— | ||
|
5
|
5
95821-08016-00 Bolt, Flange (497) |
95821-08016-00 |
from US $1.21 |
||
| replacements | |||||
|
5
|
5
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
5
|
5
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.39 |
||
