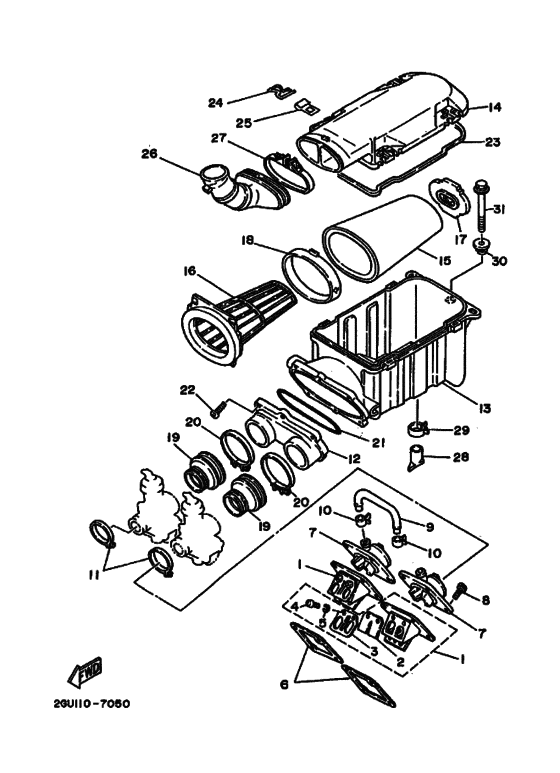

Intake Diagram Yamaha BANSHEE Banshee
- Model code
- 2GU0
- Engine Capacity
- 347
- Year
- 1988
- Sales region
- Europe (030)
- Colour
- White (WW; 0036)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-13610-01-00 Reed Valve Assy |
2GU-13610-01-00 |
from US $88.42 |
||
|
2
|
2
2GU-13613-00-00 Reed, Valve |
2GU-13613-00-00 |
from US $6.74 |
||
|
3
|
3
2GU-13616-00-00 Stopper, Reed Valve |
2GU-13616-00-00 |
from US $4.38 |
||
|
4
|
4
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
55K-13621-00-00 Gasket, Valve Seat |
55K-13621-00-00 |
from US $4.82 |
||
| replacement | |||||
|
6
|
6
3GG-13621-00-00 Gasket, Valve Seat |
3GG-13621-00-00 |
from US $3.72 |
||
|
7
|
7
31K-13565-00-00 Joint, Carburetor |
31K-13565-00-00 |
from US $52.94 |
||
| replacement | |||||
|
7
|
7
31K-13565-01-00 Joint, Carburetor |
31K-13565-01-00 |
from US $42.42 |
||
|
8
|
8
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
9
|
9
29L-14465-00-00 Pipe |
29L-14465-00-00 |
from US $29.04 |
||
|
10
|
10
90467-20085-00 Clip |
90467-20085-00 |
from US $1.42 |
||
|
11
|
11
90460-44108-00 Clamp, Hose |
90460-44108-00 |
from US $10.06 |
||
| replacement | |||||
|
11
|
11
904-50440-46-00 Hose Clamp Assy |
904-50440-46-00 |
from US $6.40 |
||
|
12
|
12
2GU-14411-00-00 Case, Air Cleaner 1 |
2GU-14411-00-00 |
from US $13.32 |
||
|
13
|
13
2GU-14421-00-00 Case, Air Cleaner 2 |
2GU-14421-00-00 |
from US $102.81 |
||
| replacement | |||||
|
13
|
13
2GU-14421-01-00 Case, Air Cleaner 2 |
2GU-14421-01-00 |
from US $102.68 |
||
|
14
|
14
2GU-14412-00-00 Cap, Cleaner Case 1 |
2GU-14412-00-00 |
from US $36.62 |
||
|
15
|
15
2GU-14451-00-00 Element, Air Cleaner |
2GU-14451-00-00 |
from US $17.63 |
||
| replacement | |||||
|
15
|
15
2GU-14451-01-00 ELEMENT, AIR CLEANER |
2GU-14451-01-00 |
from US $18.18 |
||
|
16
|
16
2GU-14458-00-00 Guide |
2GU-14458-00-00 |
from US $41.05 |
||
| replacement | |||||
|
16
|
16
5FK-14458-00-00 Guide |
5FK-14458-00-00 |
from US $41.05 |
||
|
17
|
17
2GU-14468-00-00 Plate,element Fitting |
2GU-14468-00-00 |
from US $5.28 |
||
|
18
|
18
2GU-14459-00-00 Holder, Guide |
2GU-14459-00-00 |
US $37.85 |
||
|
19
|
19
29L-14453-01-00 Joint, Air Cleaner 1 |
29L-14453-01-00 |
from US $8.76 |
||
|
20
|
20
90460-68230-00 Clamp, Hose (29L) |
90460-68230-00 |
from US $5.40 |
||
|
21
|
21
12R-14452-00-00 Seal |
12R-14452-00-00 |
from US $9.49 |
||
| replacement | |||||
|
21
|
21
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $9.78 |
||
|
22
|
22
97780-50525-00 Screw, Tapping |
97780-50525-00 |
from US $2.12 |
||
| replacement | |||||
|
22
|
22
97780-50125-00 Screw, Tapping |
97780-50125-00 |
from US $2.55 |
||
|
23
|
23
11H-14452-00-00 Seal |
11H-14452-00-00 |
from US $9.49 |
||
| replacement | |||||
|
23
|
23
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $9.78 |
||
|
24
|
24
90465-18312-00 Clamp |
90465-18312-00 |
from US $5.13 |
||
|
25
|
25
90468-05184-00 Clip |
90468-05184-00 |
from US $3.04 |
||
|
26
|
26
2GU-14437-00-00 Duct |
2GU-14437-00-00 |
from US $14.17 |
||
|
27
|
27
90460-99291-00 Clamp, Hose |
90460-99291-00 |
from US $16.50 |
||
|
28
|
28
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $2.69 |
||
|
29
|
29
90467-22047-00 Clip |
90467-22047-00 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
904-67220-80-00 Clip |
904-67220-80-00 |
from US $1.56 |
||
|
30
|
30
90480-18171-00 Grommet |
90480-18171-00 |
from US $1.70 |
||
|
31
|
31
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.36 |
||
| replacement | |||||
|
31
|
31
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
