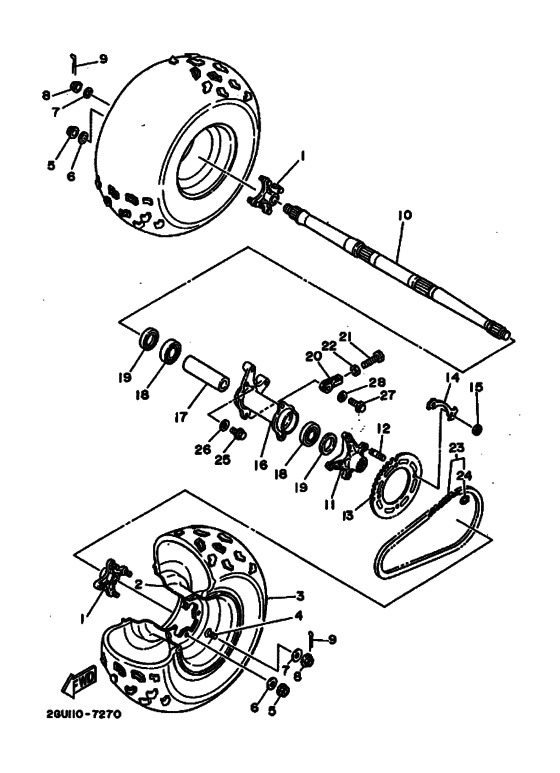

Rear wheel Diagram Yamaha BANSHEE Banshee
- Model code
- 2GU0
- Engine Capacity
- 347
- Year
- 1988
- Sales region
- Europe (030)
- Colour
- White (WW; 0036)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-25383-00-00 Collar, Wheel |
2GU-25383-00-00 |
from US $93.81 |
||
| replacement | |||||
|
1
|
1
1PE-F53K0-00-00 Wheel Shaft Collar Assy |
1PE-F53K0-00-00 |
from US $93.81 |
||
|
2
|
2
2XK-25390-00-7H
Rear Wheel Comp
ALMITE GOLD |
2XK-25390-00-7H |
— | ||
| replacements | |||||
|
2
|
2
2XK-25390-02-7H
2XK-25390-03-HM
ALMITE GOLD |
2XK-25390-02-7H |
— | ||
|
2
|
2
2XK-25390-01-7H
Rear Wheel Comp
ALMITE GOLD |
2XK-25390-01-7H |
— | ||
|
3
|
3
941-10096-N3-00
Tire (22X10-9)
22x10-9; DUNLOP |
941-10096-N3-00 |
— | ||
| replacement | |||||
|
3
|
3
94110-090X4-00
Tire (At22X10-9*kt775B T/l N)
22x10-9; DUNLOP |
94110-090X4-00 |
— | ||
|
4
|
4
939-00000-22-00
Valve, Rim (Tr413)
TAIHEIYO |
939-00000-22-00 |
— | ||
| replacement | |||||
|
4
|
4
939-00000-30-00 Valve, Rim (Tr412)TAIHEIYO |
939-00000-30-00 |
from US $7.65 |
||
|
5
|
5
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
5
|
5
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
5
|
5
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
6
|
6
92901-10200-00 Washer |
92901-10200-00 |
from US $0.90 |
||
| replacement | |||||
|
6
|
6
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
7
|
7
90201-140A6-00 Washer, Plate |
90201-140A6-00 |
US $3.83 |
||
| replacement | |||||
|
7
|
7
90201-14022-00 Washer, Plate |
90201-14022-00 |
from US $3.83 |
||
|
8
|
8
90171-14037-00 Nut, Castle (29U) |
90171-14037-00 |
from US $10.10 |
||
|
9
|
9
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
9
|
9
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
10
|
10
38W-25381-02-00 Axle, Wheel |
38W-25381-02-00 |
from US $420.11 |
||
| replacement | |||||
|
10
|
10
38W-25381-10-00 Axle, Wheel |
38W-25381-10-00 |
from US $420.11 |
||
|
11
|
11
2GU-25386-00-00 Collar, Sprocket Axle |
2GU-25386-00-00 |
US $306.02 |
||
| replacement | |||||
|
11
|
11
999-99031-34-00 Collar Set |
999-99031-34-00 |
US $306.02 |
||
|
12
|
12
90116-10483-00 Bolt, Stud |
90116-10483-00 |
from US $3.54 |
||
|
13
|
13
2GU-25442-20-33
Sprocket, Driven (42T)
42T; YAMAHA BLACK |
2GU-25442-20-33 |
— | ||
| replacement | |||||
|
13
|
13
2GU-25442-20-00
Gear, Sprocket Wheel
42T; YAMAHA BLACK |
2GU-25442-20-00 |
— | ||
|
14
|
14
5Y1-25412-00-00 Washer |
5Y1-25412-00-00 |
from US $14.53 |
||
|
15
|
15
901-70102-19-00
Nut
|
901-70102-19-00 |
— | ||
| replacement | |||||
|
15
|
15
90170-10011-00 Nut |
90170-10011-00 |
from US $1.52 |
||
|
16
|
16
2GU-25311-00-35
Hub, Rear
SILVER |
2GU-25311-00-35 |
— | ||
|
17
|
17
90560-35263-00 Spacer |
90560-35263-00 |
from US $18.14 |
||
|
18
|
18
93306-00705-00 Bearing |
93306-00705-00 |
from US $45.64 |
||
|
19
|
19
93102-43341-00 Oil Seal |
93102-43341-00 |
from US $10.54 |
||
|
20
|
20
1UY-25388-00-00 Puller, Chain 1 |
1UY-25388-00-00 |
from US $19.27 |
||
|
21
|
21
90101-08615-00 Bolt |
90101-08615-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90101-08777-00 Bolt |
90101-08777-00 |
from US $2.02 |
||
|
22
|
22
95303-08600-00 Nut |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
22
|
22
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
22
|
22
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
23
|
23
94581-08104-00 Chain (Did520V-103L)520V6 104LL |
94581-08104-00 |
from US $107.44 |
||
| replacement | |||||
|
23
|
23
9Y5-81871-03-00 Chain520V6 104LL |
9Y5-81871-03-00 |
from US $121.84 |
||
|
24
|
24
94681-08011-00 Joint, Chain (Did520V Fj)520V6-FJ |
94681-08011-00 |
from US $6.05 |
||
| replacement | |||||
|
24
|
24
946-81870-11-00 Joint, Chain520V6-FJ |
946-81870-11-00 |
from US $8.08 |
||
|
25
|
25
901-05124-62-00 Flange Bolt |
901-05124-62-00 |
from US $8.19 |
||
| replacement | |||||
|
25
|
25
999-99034-87-00 Bolt, Flange |
999-99034-87-00 |
from US $7.78 |
||
|
26
|
26
90201-120A5-00 Washer, Plate |
90201-120A5-00 |
from US $4.39 |
||
|
27
|
27
901-05104-18-00
Bolt, Washer Based
|
901-05104-18-00 |
— | ||
|
28
|
28
90201-106F2-00 Washer, Plate (17K) |
90201-106F2-00 |
from US $2.22 |
||
