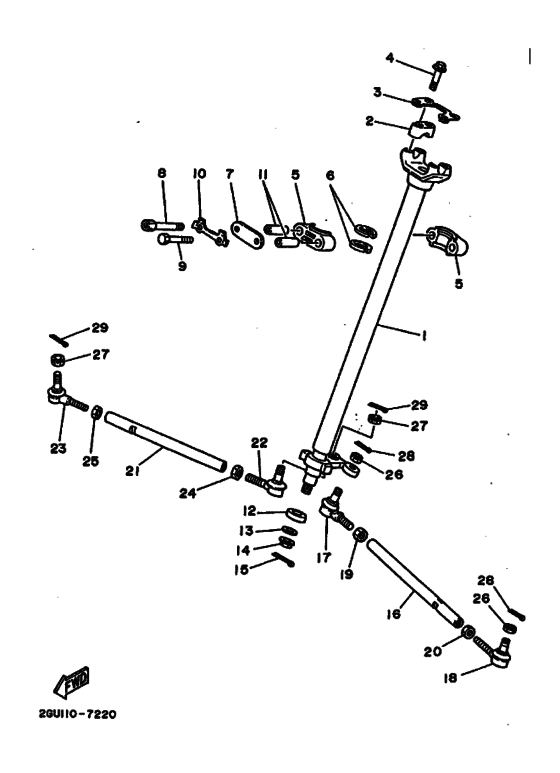

Steering Diagram Yamaha BANSHEE Banshee
- Model code
- 2GU0
- Engine Capacity
- 347
- Year
- 1988
- Sales region
- Europe (030)
- Colour
- White (WW; 0036)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-23813-00-00 Column, Steering 2 |
2GU-23813-00-00 |
from US $287.37 |
||
| replacement | |||||
|
1
|
1
3GG-23813-20-00 Column, Steering 2 |
3GG-23813-20-00 |
from US $287.37 |
||
|
2
|
2
8K1-23814-00-00 Holder, Handle |
8K1-23814-00-00 |
from US $19.19 |
||
| replacement | |||||
|
2
|
2
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
3
|
3
2GU-2629K-00-00
Stay
|
2GU-2629K-00-00 |
— | ||
|
4
|
4
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
5
|
5
1UY-23812-00-00 Bearing, Steering |
1UY-23812-00-00 |
from US $7.36 |
||
|
6
|
6
93112-31011-00 Oil Seal |
93112-31011-00 |
from US $3.60 |
||
|
7
|
7
2GU-23868-00-00 Bracket, Steering Lower |
2GU-23868-00-00 |
from US $18.14 |
||
|
8
|
8
97321-08060-00 Bolt (663) |
97321-08060-00 |
from US $9.09 |
||
| replacement | |||||
|
8
|
8
970-13080-60-00 Bolt |
970-13080-60-00 |
from US $5.72 |
||
|
9
|
9
90109-082E9-00
Bolt
|
90109-082E9-00 |
— | ||
|
10
|
10
1UY-23894-01-00 Washer, Lock 1 |
1UY-23894-01-00 |
from US $1.70 |
||
|
11
|
11
90387-090R0-00 Collar (903-87090-R0-00) |
90387-090R0-00 |
from US $12.64 |
||
| replacement | |||||
|
11
|
11
903-87106-T4-00 Collar (903-87090-R0-00) |
903-87106-T4-00 |
from US $13.77 |
||
|
12
|
12
90387-176R6-00 Collar |
90387-176R6-00 |
from US $4.96 |
||
|
13
|
13
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.52 |
||
|
14
|
14
90185-10115-00 Nut, Self-Locking |
90185-10115-00 |
from US $1.84 |
||
| replacement | |||||
|
14
|
14
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
15
|
15
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
15
|
15
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
16
|
16
2GU-23831-00-00 Rod, Tie |
2GU-23831-00-00 |
from US $19.55 |
||
| replacement | |||||
|
16
|
16
2GU-23831-01-00 Rod, Tie |
2GU-23831-01-00 |
from US $19.55 |
||
|
17
|
17
1UY-23841-00-00 Joint, Universal 1 |
1UY-23841-00-00 |
from US $48.36 |
||
| replacement | |||||
|
17
|
17
1UY-23841-01-00 Joint, Universal 1 |
1UY-23841-01-00 |
from US $53.37 |
||
|
18
|
18
1UY-23845-00-00 Joint, Universal 2 |
1UY-23845-00-00 |
from US $54.02 |
||
| replacement | |||||
|
18
|
18
1UY-23845-01-00 Joint, Universal 2 |
1UY-23845-01-00 |
from US $56.22 |
||
|
19
|
19
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
19
|
19
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
20
|
20
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.66 |
||
|
21
|
21
2GU-23831-00-00 Rod, Tie |
2GU-23831-00-00 |
from US $19.55 |
||
| replacement | |||||
|
21
|
21
2GU-23831-01-00 Rod, Tie |
2GU-23831-01-00 |
from US $19.55 |
||
|
22
|
22
1UY-23841-00-00 Joint, Universal 1 |
1UY-23841-00-00 |
from US $48.36 |
||
| replacement | |||||
|
22
|
22
1UY-23841-01-00 Joint, Universal 1 |
1UY-23841-01-00 |
from US $53.37 |
||
|
23
|
23
1UY-23845-00-00 Joint, Universal 2 |
1UY-23845-00-00 |
from US $54.02 |
||
| replacement | |||||
|
23
|
23
1UY-23845-01-00 Joint, Universal 2 |
1UY-23845-01-00 |
from US $56.22 |
||
|
24
|
24
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
24
|
24
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
25
|
25
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.66 |
||
|
26
|
26
90171-10046-00 Nut, Castle(1Uy) |
90171-10046-00 |
from US $1.84 |
||
| replacement | |||||
|
26
|
26
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
|
27
|
27
90171-10046-00 Nut, Castle(1Uy) |
90171-10046-00 |
from US $1.84 |
||
| replacement | |||||
|
27
|
27
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
|
28
|
28
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
28
|
28
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
29
|
29
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
29
|
29
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
