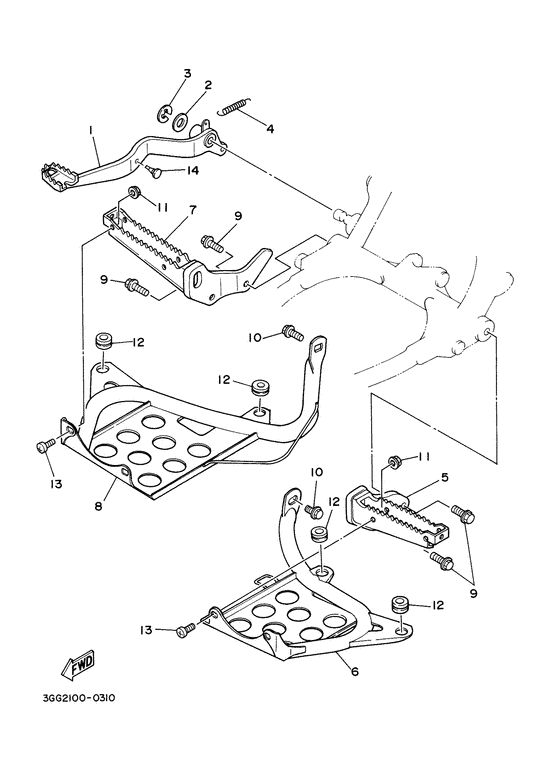

Stand & Footrest Diagram Yamaha BANSHEE Banshee
- Model code
- 3B5D
- Engine Capacity
- 347
- Year
- 2007
- Sales region
- Australia (010)
- Colour
- Romantique Rouge (RTR; 00TR)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GG-27211-10-00 Pedal, Brake |
3GG-27211-10-00 |
from US $38.04 |
||
|
02
|
02
90201-15018-00 Washer, Plate |
90201-15018-00 |
from US $1.80 |
||
|
03
|
03
93430-12008-00 Circlip |
93430-12008-00 |
from US $1.80 |
||
|
04
|
04
90506-20380-00 Spring, Tension(1Fn) |
90506-20380-00 |
from US $4.19 |
||
|
05
|
05
3GG-27411-01-00
Footrest 1
|
3GG-27411-01-00 |
— | ||
|
06
|
06
3GD-27445-00-00
Plate 1
|
3GD-27445-00-00 |
— | ||
|
07
|
07
3GG-27421-01-00
Footrest 2
|
3GG-27421-01-00 |
— | ||
|
08
|
08
3GG-27446-00-00 Plate 2 |
3GG-27446-00-00 |
from US $166.53 |
||
| replacement | |||||
|
08
|
08
3GG-27446-10-00
Plate 2
|
3GG-27446-10-00 |
— | ||
|
09
|
09
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $0.90 |
||
|
10
|
10
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $0.90 |
||
| replacements | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $0.90 |
||
|
11
|
11
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
11
|
11
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.13 |
||
|
12
|
12
90480-18411-00 Grommet |
90480-18411-00 |
from US $1.59 |
||
|
13
|
13
92017-08016-00 Bolt, Button |
92017-08016-00 |
from US $1.50 |
||
|
14
|
14
90480-05201-00 Grommet |
90480-05201-00 |
from US $1.80 |
||
