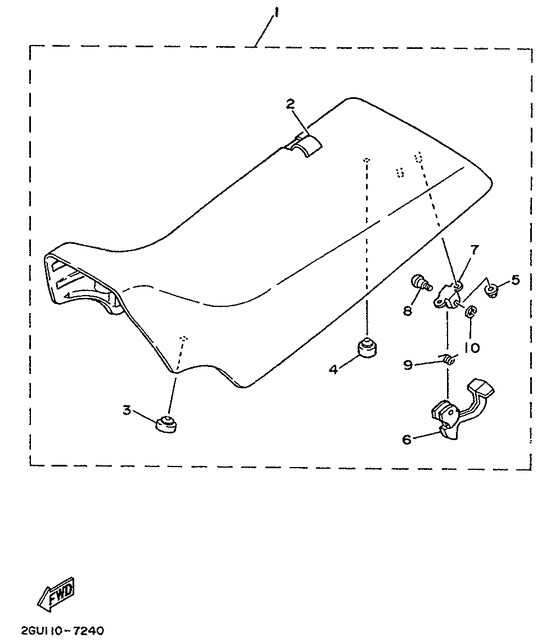

Seat Diagram Yamaha BANSHEE Banshee
- Model code
- 5FK2
- Engine Capacity
- 347
- Year
- 1999
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GG-24710-50-00
Single Seat Assembly
Ur yb |
3GG-24710-50-00 |
— | ||
|
01
|
01
3GG-24710-60-00
Single Seat Assembly
Ur dpbse |
3GG-24710-60-00 |
— | ||
|
02
|
02
3GG-24731-50-00
Cover, Seat
Ur yb |
3GG-24731-50-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Ur yb |
999-99999-99-00 |
— | ||
|
02
|
02
3GG-24731-60-00 Cover, SeatUrdpbse |
3GG-24731-60-00 |
US $332.19 |
||
|
03
|
03
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $3.05 |
||
|
04
|
04
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $8.05 |
||
|
05
|
05
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
06
|
06
3GD-24776-00-00 Lever, Seat |
3GD-24776-00-00 |
from US $18.99 |
||
|
07
|
07
4K0-24775-00-00 Bracket, Seat Lever |
4K0-24775-00-00 |
from US $7.51 |
||
|
08
|
08
4K0-24774-01-00 Pin |
4K0-24774-01-00 |
from US $7.51 |
||
|
09
|
09
90508-20454-00 Spring, Torsion |
90508-20454-00 |
from US $2.83 |
||
|
10
|
10
93430-04002-00 Circlip |
93430-04002-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
