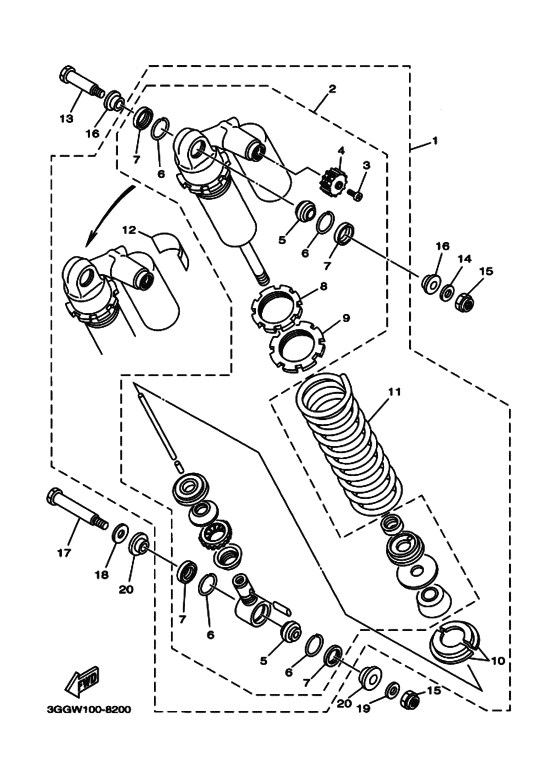

Rear suspension Diagram Yamaha BANSHEE Banshee
- Model code
- 5FKD
- Engine Capacity
- 347
- Year
- 2001
- Sales region
- Japan (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GG-22210-60-36
Shock Absorber Assy, Rear
ＳＨＯＣＫ ＡＢＳＯＲＢＥＲ ＡＳＳＹ， ＲＥＡＲ; |
3GG-22210-60-36 |
— | ||
|
2
|
2
3GG-22201-40-00 Damper Sub Assy．ＤＡＭＰＥＲ ＳＵＢ ＡＳＳＹ; |
3GG-22201-40-00 |
US $935.11 |
||
|
3
|
3
98507-04006-00 Vis, Tete Tronconique．．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98507-04006-00 |
US $1.56 |
||
| replacement | |||||
|
3
|
3
98517-04006-00 Screw, Pan Head．．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98517-04006-00 |
from US $1.28 |
||
|
4
|
4
39W-22464-00-00
Knob, Control
．．ＫＮＯＢ， ＣＯＮＴＲＯＬ; |
39W-22464-00-00 |
— | ||
|
5
|
5
93399-99916-00 Bearing (93399-99934-00)．．ＢＥＡＲＩＮＧ; |
93399-99916-00 |
from US $59.38 |
||
| replacement | |||||
|
5
|
5
933-99999-T3-00 Bearing (93399-99934-00)．．ＢＥＡＲＩＮＧ; |
933-99999-T3-00 |
from US $68.63 |
||
|
6
|
6
93440-30113-00 Circlip．．ＣＩＲＣＬＩＰ; |
93440-30113-00 |
from US $1.70 |
||
|
7
|
7
93104-18077-00 Oil Seal．．ＯＩＬ ＳＥＡＬ; |
93104-18077-00 |
from US $7.07 |
||
|
8
|
8
1RK-22215-00-00 Ring, Cover．．ＲＩＮＧ， ＣＯＶＥＲ; |
1RK-22215-00-00 |
from US $22.81 |
||
|
9
|
9
38W-22223-00-00 Seat, Spring Lower．．ＳＥＡＴ， ＳＰＲＩＮＧ ＬＯＷＥＲ; |
38W-22223-00-00 |
from US $28.27 |
||
|
10
|
10
22W-22214-01-00 Guide, Spring 1．ＧＵＩＤＥ， ＳＰＲＩＮＧ １; |
22W-22214-01-00 |
from US $12.29 |
||
| replacement | |||||
|
10
|
10
3P6-22214-10-00 Guide, Spring 1．ＧＵＩＤＥ， ＳＰＲＩＮＧ １; |
3P6-22214-10-00 |
from US $9.85 |
||
|
11
|
11
38W-22212-10-36 Spring．ＳＰＲＩＮＧ; |
38W-22212-10-36 |
from US $165.46 |
||
|
12
|
12
4AA-22259-50-00 Label, Warning．ＬＡＢＥＬ， ＷＡＲＮＩＮＧ; |
4AA-22259-50-00 |
from US $2.98 |
||
|
13
|
13
90109-10704-00
Bolt
ＢＯＬＴ; |
90109-10704-00 |
— | ||
|
14
|
14
90201-10430-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-10430-00 |
from US $2.77 |
||
| replacement | |||||
|
14
|
14
90201-100F7-00 Washer (7A9)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-100F7-00 |
from US $2.77 |
||
|
15
|
15
90185-10120-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
90185-10120-00 |
from US $4.72 |
||
|
16
|
16
90387-127G8-00 CollarＣＯＬＬＡＲ; |
90387-127G8-00 |
from US $10.34 |
||
|
17
|
17
90109-102A6-00 BoltＢＯＬＴ; |
90109-102A6-00 |
from US $8.50 |
||
|
18
|
18
90201-120E6-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-120E6-00 |
from US $2.55 |
||
| replacement | |||||
|
18
|
18
90201-12027-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-12027-00 |
from US $2.55 |
||
|
19
|
19
902-01100-E9-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
902-01100-E9-00 |
— | ||
| replacement | |||||
|
19
|
19
90201-10M05-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-10M05-00 |
from US $8.05 |
||
|
20
|
20
90387-126H8-00 CollarＣＯＬＬＡＲ; |
90387-126H8-00 |
from US $16.09 |
||
