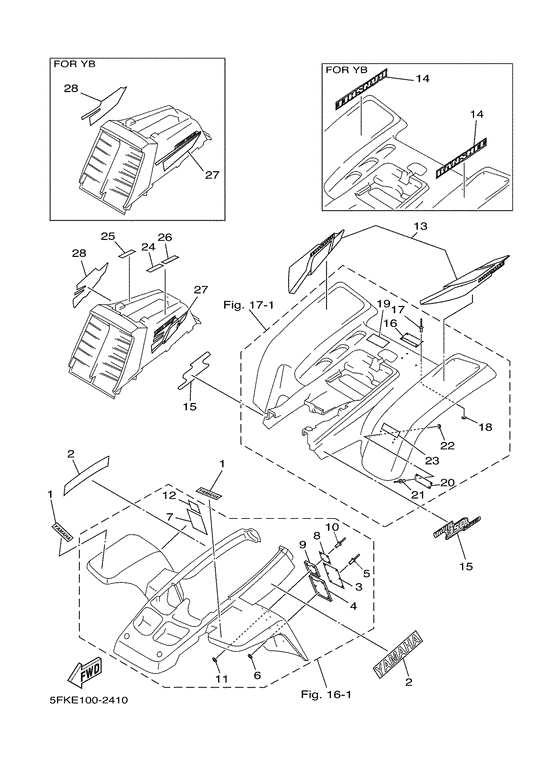

Emblem.label 2 Diagram Yamaha BANSHEE Banshee
- Model code
- 5FKF
- Engine Capacity
- 347
- Year
- 2002
- Sales region
- Canada (010)
- Colour
- Yamaha Black (YB; 0033)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GD-2153E-00-00 Emblem, YamahaUr for dpbse |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
01
|
01
3GD-2153E-01-00 EMBLEM YAMAHAUr for dpbse |
3GD-2153E-01-00 |
from US $5.07 |
||
|
01
|
01
3GD-2153E-10-00 Emblem, YamahaUr for yb |
3GD-2153E-10-00 |
from US $5.93 |
||
| replacement | |||||
|
01
|
01
3GD-2153E-11-00 EMBLEM, YAMAHAUr for yb |
3GD-2153E-11-00 |
from US $5.07 |
||
|
02
|
02
992-41002-80-00 Emblem, YamahaUr for dpbse |
992-41002-80-00 |
from US $16.20 |
||
|
02
|
02
99246-00280-00 Emblem, YamahaUr for yb |
99246-00280-00 |
from US $14.71 |
||
|
03
|
03
5FE-21568-01-00 Label, Warning |
5FE-21568-01-00 |
from US $43.52 |
||
|
04
|
04
4EM-21581-20-00 Stay, Plate Fitting 1Ur for dpbse |
4EM-21581-20-00 |
from US $21.25 |
||
|
04
|
04
4EM-21581-40-00
Stay, Plate Fitting 1
Ur for yb |
4EM-21581-40-00 |
— | ||
|
05
|
05
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
06
|
06
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
07
|
07
4WU-21568-10-00 Label, WarningFrench |
4WU-21568-10-00 |
from US $19.84 |
||
|
08
|
08
5FE-21697-01-00
Label, Warning Age
|
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
08
|
08
4D3-2816L-00-00 Label, Warning Age |
4D3-2816L-00-00 |
from US $18.18 |
||
|
09
|
09
3JM-21591-10-00 Stay, Plate Fitting 2Ur for dpbse |
3JM-21591-10-00 |
from US $19.27 |
||
|
09
|
09
3JM-21591-40-00 Stay, Plate Fitting 2Ur for yb |
3JM-21591-40-00 |
from US $16.16 |
||
|
10
|
10
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
11
|
11
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
12
|
12
3JM-21697-10-00 Label, Caution 2French |
3JM-21697-10-00 |
US $16.15 |
||
| replacement | |||||
|
12
|
12
4D3-2816L-10-00 Label, Warning AgeFrench |
4D3-2816L-10-00 |
US $16.15 |
||
|
13
|
13
5FK-2165A-30-00
Graphic Set,rear Fender
For dpbse |
5FK-2165A-30-00 |
— | ||
|
14
|
14
5FK-2163G-00-00 Emblem 1For yb |
5FK-2163G-00-00 |
US $11.18 |
||
|
15
|
15
5FK-21783-20-00
Emblem 3
Ur for dpbse |
5FK-21783-20-00 |
— | ||
|
15
|
15
5FK-21783-30-00
Emblem 3
Ur for yb |
5FK-21783-30-00 |
— | ||
|
16
|
16
5FE-2151H-01-00 Label 5 |
5FE-2151H-01-00 |
from US $23.80 |
||
|
17
|
17
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
18
|
18
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
19
|
19
4WU-2151H-10-00 Label 5French |
4WU-2151H-10-00 |
US $12.04 |
||
|
20
|
20
5FK-21696-01-00 Label, Caution |
5FK-21696-01-00 |
from US $30.46 |
||
|
21
|
21
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
22
|
22
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
23
|
23
5FK-21696-B0-00
Label, Caution
|
5FK-21696-B0-00 |
— | ||
|
24
|
24
3XJ-2415E-A0-00
Label, Caution
|
3XJ-2415E-A0-00 |
— | ||
| replacement | |||||
|
24
|
24
3XJ-2415E-A1-00 Label, Caution |
3XJ-2415E-A1-00 |
from US $6.62 |
||
|
25
|
25
3XJ-2415E-B0-00 Label, Caution |
3XJ-2415E-B0-00 |
US $15.73 |
||
| replacement | |||||
|
25
|
25
3XJ-2415E-B1-00 Label, Caution |
3XJ-2415E-B1-00 |
US $15.30 |
||
|
26
|
26
4SH-2416E-00-00
Label, Caution Canada
|
4SH-2416E-00-00 |
— | ||
|
27
|
27
5FK-2173E-30-00
Graphic 1
Ur for dpbse |
5FK-2173E-30-00 |
— | ||
|
27
|
27
5FK-2173E-40-00
Graphic 1
Ur for yb |
5FK-2173E-40-00 |
— | ||
|
28
|
28
5FK-2173F-40-00 Graphic 2Ur for yb |
5FK-2173F-40-00 |
US $27.18 |
||
|
28
|
28
5FK-2173F-30-00 Graphic 2Ur for dpbse |
5FK-2173F-30-00 |
US $27.18 |
||
