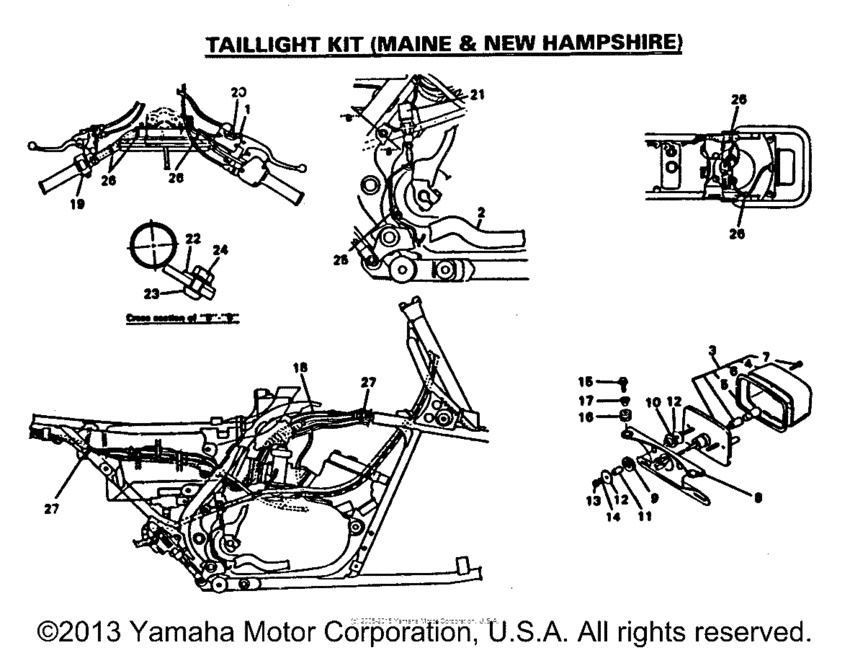

Taillight kit (Maine & new hampshire) Diagram Yamaha BANSHEE Banshee
- Model code
- YFZ350F MN
- Engine Capacity
- 347
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HN-2583T-00-00 Master Cyl. Assy |
3HN-2583T-00-00 |
from US $226.58 |
||
| replacement | |||||
|
1
|
1
2GU-25870-10-00 Master Cylinder Sub Assy |
2GU-25870-10-00 |
from US $164.94 |
||
|
2
|
2
3GG-27211-00-00
Pedal, Brake
|
3GG-27211-00-00 |
— | ||
| replacement | |||||
|
2
|
2
3GG-27211-10-00 Pedal, Brake |
3GG-27211-10-00 |
from US $49.18 |
||
|
3
|
3
3JM-84710-00-00
Taillight Unit Assembly
|
3JM-84710-00-00 |
— | ||
|
4
|
4
21V-84721-00-00 Lens, Taillight |
21V-84721-00-00 |
from US $32.87 |
||
|
5
|
5
256-84714-61-00
Bulb (12V-27/8W)
12V-21/5W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
5
|
5
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
5
|
5
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
US $5.13 |
||
|
6
|
6
1K8-84523-00-00 Gasket, Lens |
1K8-84523-00-00 |
from US $5.06 |
||
|
7
|
7
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
8
|
8
3GD-84702-10-00
Bracket, Taillight
|
3GD-84702-10-00 |
— | ||
|
9
|
9
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $2.13 |
||
|
10
|
10
90480-10509-00 Grommet |
90480-10509-00 |
US $30.20 |
||
|
11
|
11
90387-06387-00
Collar
|
90387-06387-00 |
— | ||
|
12
|
12
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.66 |
||
|
13
|
13
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
14
|
14
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
958-11060-25-00
Bolt, Flange
|
958-11060-25-00 |
— | ||
| replacements | |||||
|
15
|
15
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
15
|
15
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
16
|
16
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
17
|
17
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
17
|
17
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
18
|
18
3GG-82509-00-00
Wire, Sub-Lead
|
3GG-82509-00-00 |
— | ||
