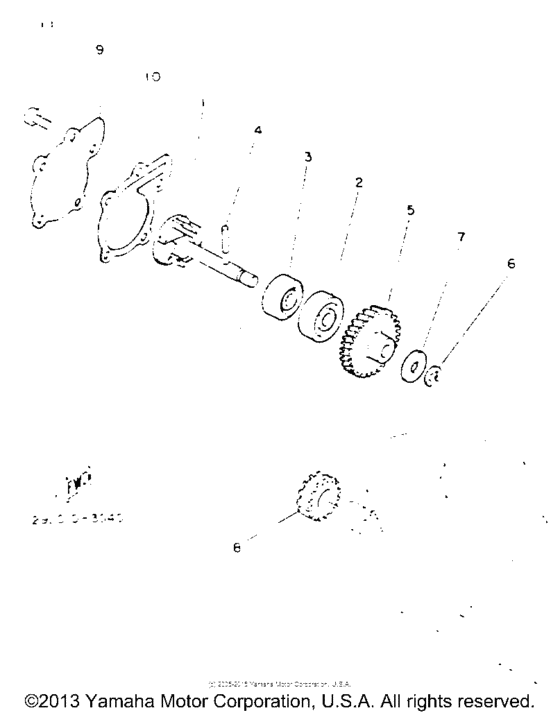

Water pump Diagram Yamaha BANSHEE Banshee
- Model code
- YFZ350E
- Engine Capacity
- 347
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-12450-01-00 Impeller Shaft Assy |
4L0-12450-01-00 |
from US $47.48 |
||
|
2
|
2
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $10.10 |
||
|
3
|
3
931-03101-68-00
Oil Seal
|
931-03101-68-00 |
— | ||
| replacement | |||||
|
3
|
3
93103-10011-00 Oil Seal |
93103-10011-00 |
from US $29.13 |
||
|
4
|
4
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.70 |
||
|
5
|
5
4L0-12459-00-00 Gear, Impeller Shaft |
4L0-12459-00-00 |
from US $13.14 |
||
|
6
|
6
99080-07600-00 Clip |
99080-07600-00 |
from US $1.77 |
||
|
7
|
7
90201-08784-00 Washer, Plate |
90201-08784-00 |
from US $1.70 |
||
|
8
|
8
4L0-12436-00-00 Gear, Drive |
4L0-12436-00-00 |
from US $81.24 |
||
|
9
|
9
4L0-12422-00-00 Cover, Housing |
4L0-12422-00-00 |
from US $8.76 |
||
|
10
|
10
3GG-12428-00-00 Gasket, Housing Cover 2 |
3GG-12428-00-00 |
from US $9.31 |
||
| replacement | |||||
|
10
|
10
3GG-12428-01-00 Gasket, Housing Cover 2 |
3GG-12428-01-00 |
from US $5.74 |
||
|
11
|
11
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.77 |
||
| replacement | |||||
|
11
|
11
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
