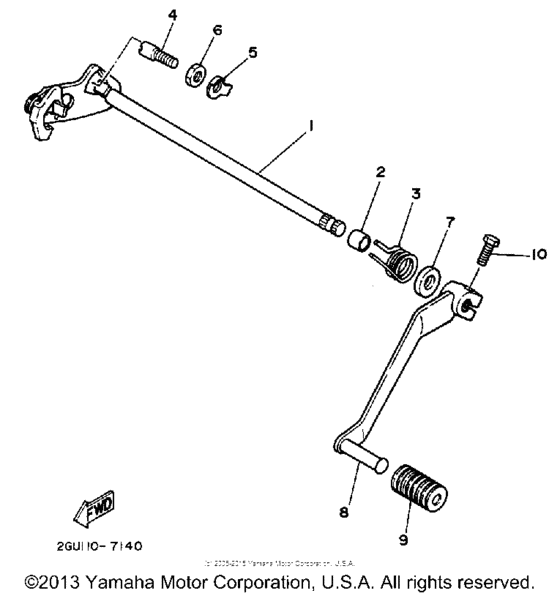

Shift shaft Diagram Yamaha BANSHEE Banshee
- Model code
- YFZ350U
- Engine Capacity
- 347
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-18101-00-00 Shift Shaft Assy |
2GU-18101-00-00 |
from US $43.98 |
||
|
2
|
2
90560-12171-00
Spacer
|
90560-12171-00 |
— | ||
|
3
|
3
90508-32374-00 Spring, Torsion |
90508-32374-00 |
from US $6.09 |
||
|
4
|
4
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
5
|
5
90215-08174-00 Washer, Lock |
90215-08174-00 |
from US $3.12 |
||
|
6
|
6
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
7
|
7
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $4.53 |
||
|
8
|
8
2GU-18110-00-00 Shift Pedal Assy |
2GU-18110-00-00 |
from US $50.81 |
||
| replacement | |||||
|
8
|
8
2GU-18110-10-00 Shift Pedal Assy |
2GU-18110-10-00 |
from US $35.38 |
||
|
9
|
9
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
10
|
10
97016-08020-00 Bolt |
97016-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
