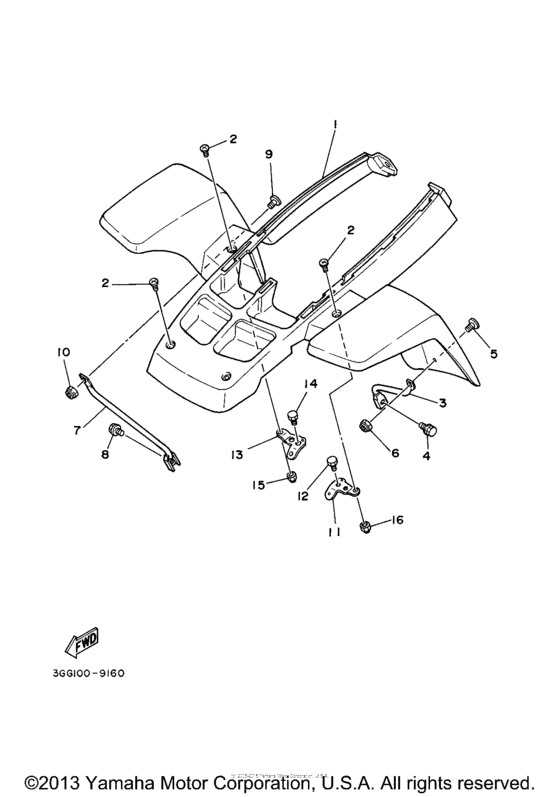

Front fender Diagram Yamaha BANSHEE Banshee
- Model code
- YFZ350V
- Engine Capacity
- 347
- Year
- 2006
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-W2151-B1-00 Front Fender CompFor DPBSE (BLUE) for Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
2GU-W2151-B1-00 |
from US $341.26 |
||
|
1
|
1
2GU-W2151-E0-00 Front Fender CompFor BWS1 (WHITE) for Color Bluish White Solid 1 BWS1 / 0892 |
2GU-W2151-E0-00 |
from US $411.02 |
||
|
2
|
2
90149-06306-00 Screw |
90149-06306-00 |
from US $2.50 |
||
|
3
|
3
2GU-21513-00-00 Stay, Fender 1 |
2GU-21513-00-00 |
from US $37.72 |
||
|
4
|
4
958-27060-10-00
Bolt, Flange(Jn5)
|
958-27060-10-00 |
— | ||
| replacement | |||||
|
4
|
4
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
5
|
5
90149-06306-00 Screw |
90149-06306-00 |
from US $2.50 |
||
|
6
|
6
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
7
|
7
2GU-21514-00-00 Stay, Fender 2 |
2GU-21514-00-00 |
from US $30.64 |
||
|
8
|
8
958-27060-10-00
Bolt, Flange(Jn5)
|
958-27060-10-00 |
— | ||
| replacement | |||||
|
8
|
8
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
9
|
9
90149-06306-00 Screw |
90149-06306-00 |
from US $2.50 |
||
|
10
|
10
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
11
|
11
2GU-21587-00-00 Stay 1 |
2GU-21587-00-00 |
from US $11.62 |
||
| replacement | |||||
|
11
|
11
2GU-21587-10-00 Stay 1 |
2GU-21587-10-00 |
from US $11.62 |
||
|
12
|
12
970-27080-16-00
Bolt
|
970-27080-16-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
13
|
13
2GU-21588-00-00 Stay 2 |
2GU-21588-00-00 |
from US $11.62 |
||
| replacement | |||||
|
13
|
13
2GU-21588-10-00 Stay 2 |
2GU-21588-10-00 |
from US $11.62 |
||
|
14
|
14
970-27080-16-00
Bolt
|
970-27080-16-00 |
— | ||
| replacement | |||||
|
14
|
14
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
15
|
15
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
16
|
16
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
